Note: This article is discontinued.
90° bend 85 FT
Item no. 7126417 | EAN 4012196248056
- Product description
-
Product description90° bend, horizontal, for all cable tray types of 85 mm side height.
-
- Technical data
-
Technical data

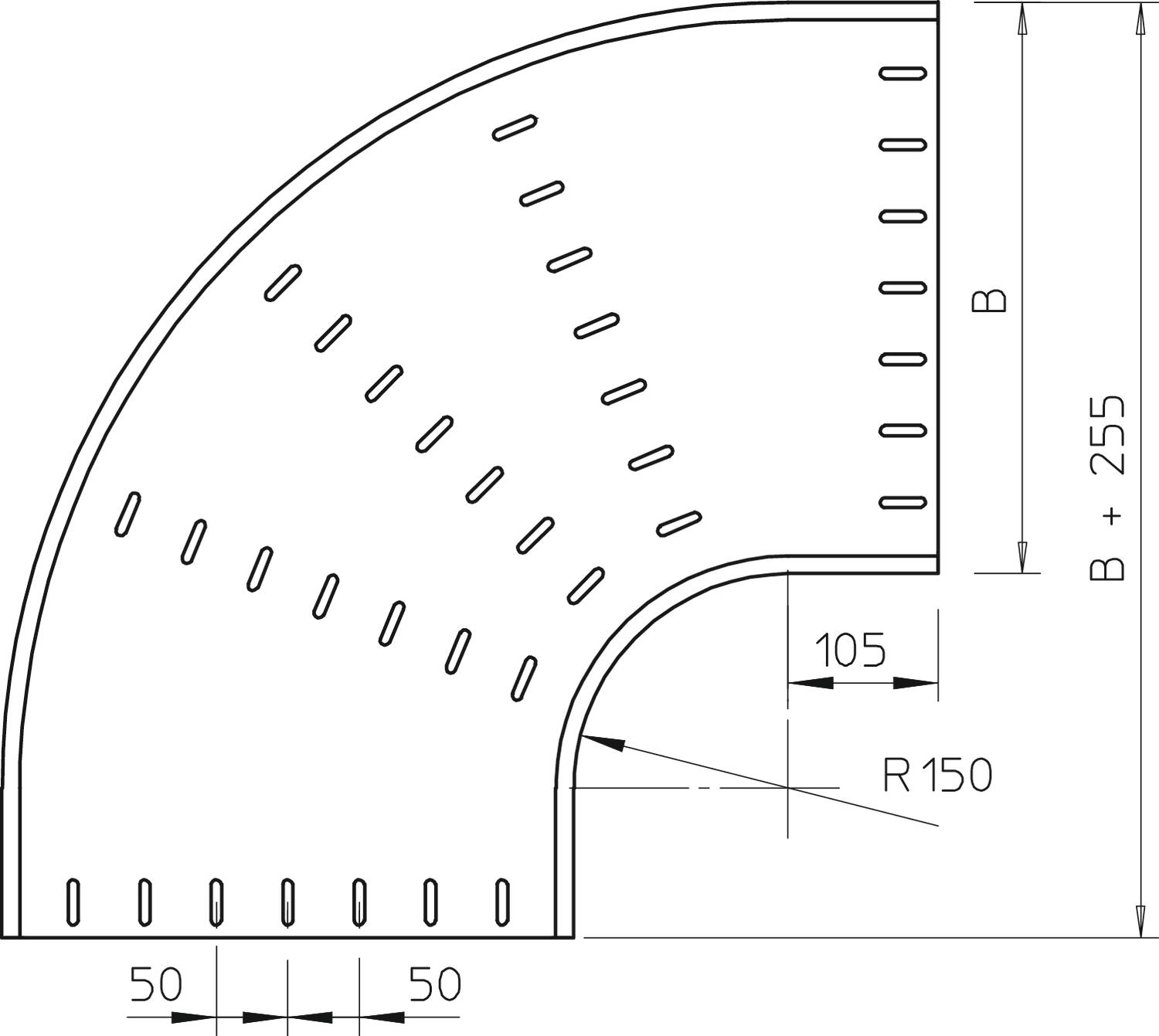

Bend (angle) 90° Change of direction Horizontal Connector version Without connectors Dimension 85x400 Dimension B 400 mm Dimension R 150 mm Height 3 in Height 85 mm Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Rustproof steel, pickled no Side perforation no Surface Hot-dip galvanised Type of connector, cable support system Screwed Wide-span version no Width 400 mm Width 16 in - All types
-
System accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet RB 90 840 FT / 7126417 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RB 90 840 FT / 7126417 , 0.10MB , pdfREACH Declaration of conformity RB 90 840 FT / 7126417 , 0.12MB , pdfRoHS Declaration of conformity RB 90 840 FT / 7126417 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
