90° bend 60 FT
Item no. 6225068 | EAN 4012196443680
- Product description
-
Product description

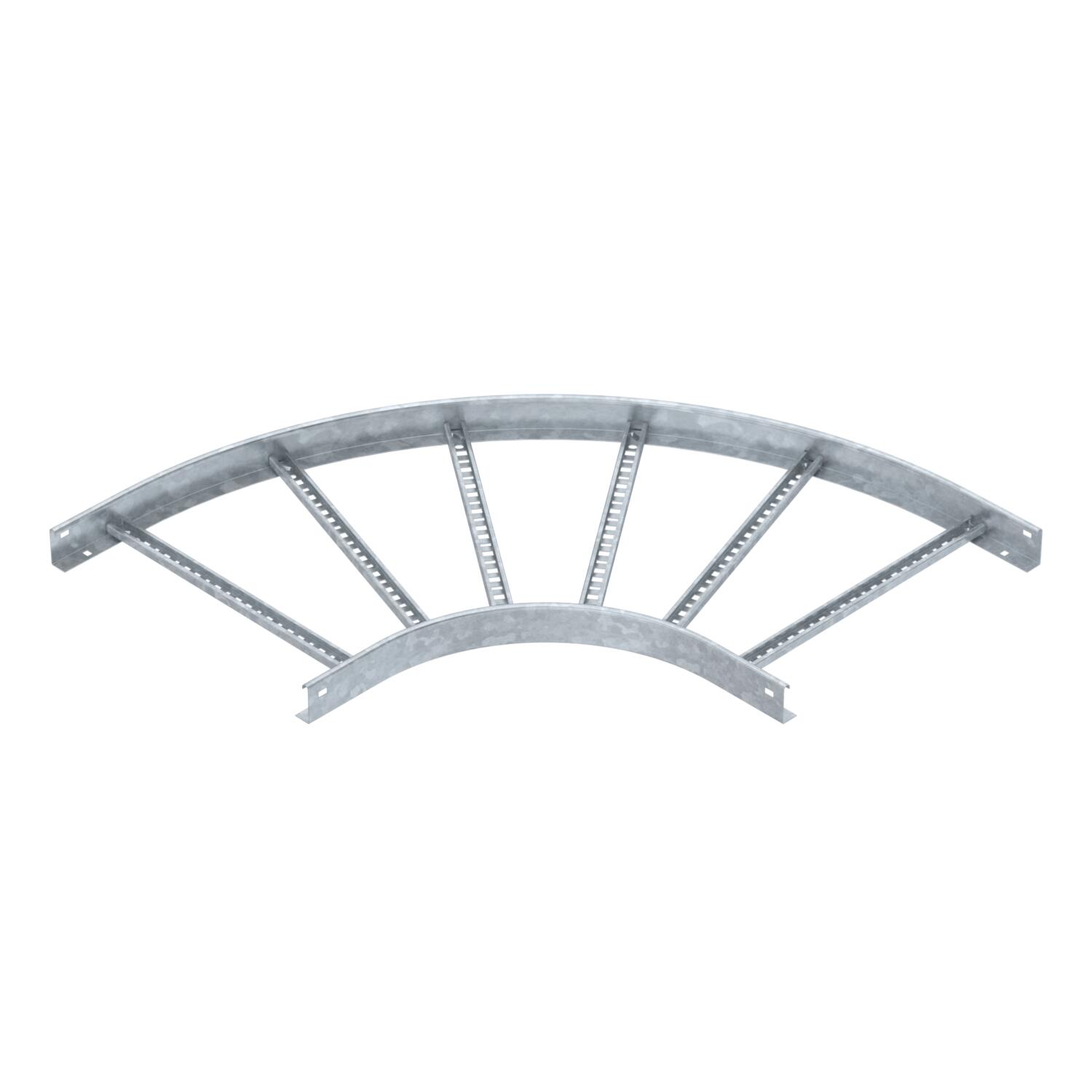

90° bend, horizontal, with welded rung for all cable ladder types of 60 mm side height.
-
- Technical data
-
Technical data

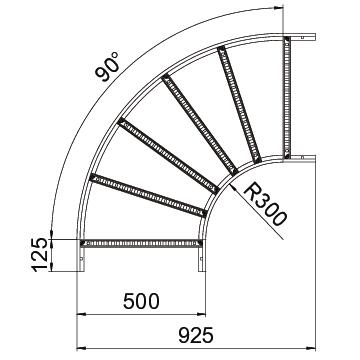

Bend (angle) 90° Change of direction Horizontal Connector version Without connectors Dimension 60x500 Dimension B 500 mm Dimension R 500 mm Height 60 mm Hinged no Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Hot-dip galvanised Version of the rungs Profile perforated Wide-span version no Width 500 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FT
LVG 60 FT 6208843 10 piece - Downloads
-
Data sheet LB 90 650 R3 FT / 6225068 , 0.21MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LB 90 650 R3 FT / 6225068 , 0.10MB , pdfUK Declaration of Conformity LB 90 650 R3 FT / 6225068 , 0.09MB , pdfREACH Declaration of conformity LB 90 650 R3 FT / 6225068 , 0.12MB , pdfRoHS Declaration of conformity LB 90 650 R3 FT / 6225068 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
