90° bend 60 A4
Item no. 6225108 | EAN 4012196443789
- Product description
-
Product description

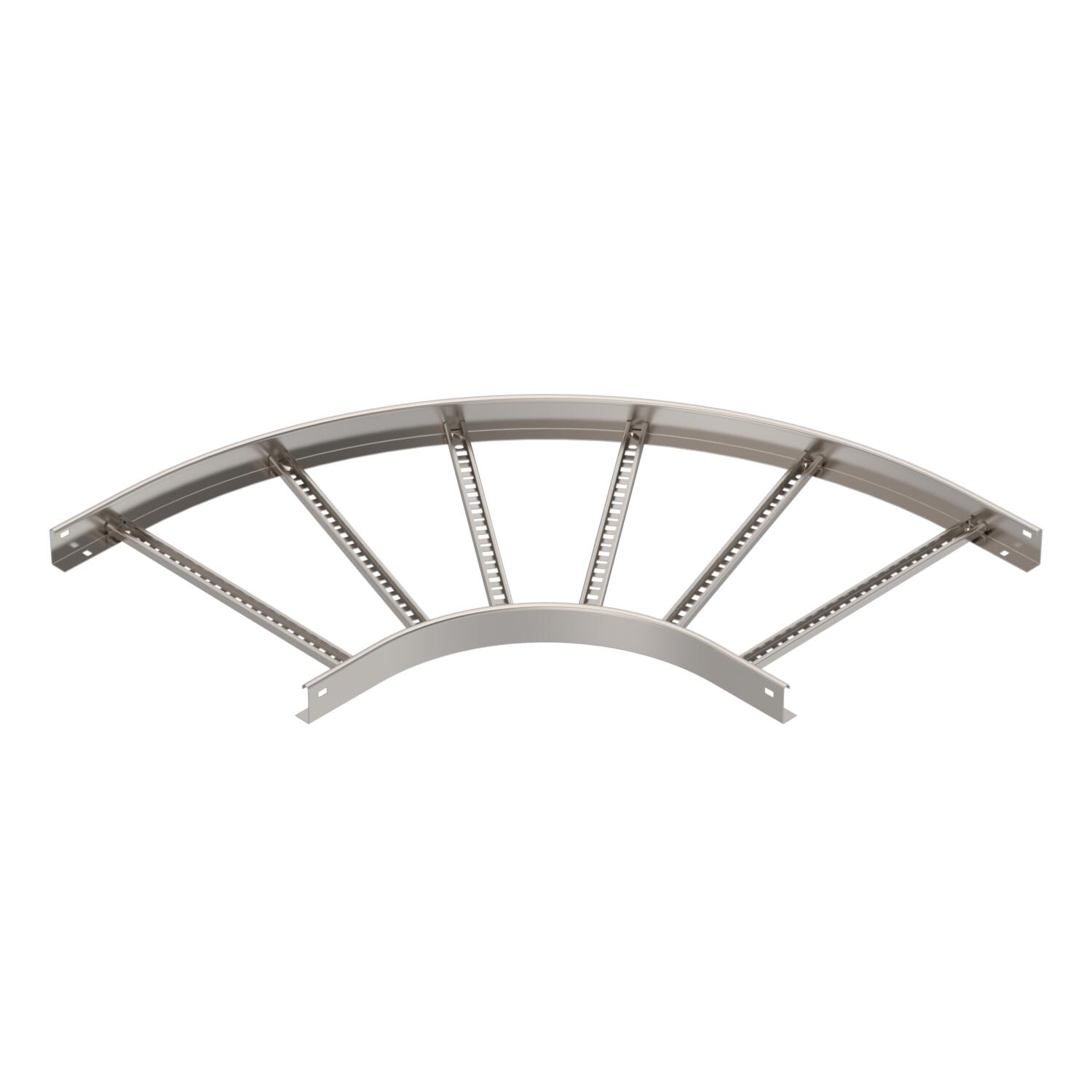

90° bend, horizontal, with welded rung for all cable ladder types of 60 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Without connectors Dimension 60x500 Hinged no Maintain electrical functions no Material Stainless steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Bright, treated Version of the rungs Profile perforated Wide-span version no Dimensions
Dimension B 500 mm Dimension R 500 mm Height 60 mm Width 500 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector A4
LVG 60 A4 6208835 10 piece - Downloads
-
