90° bend 60 A2
Item no. 6225084 | EAN 4012196443710
- Product description
-

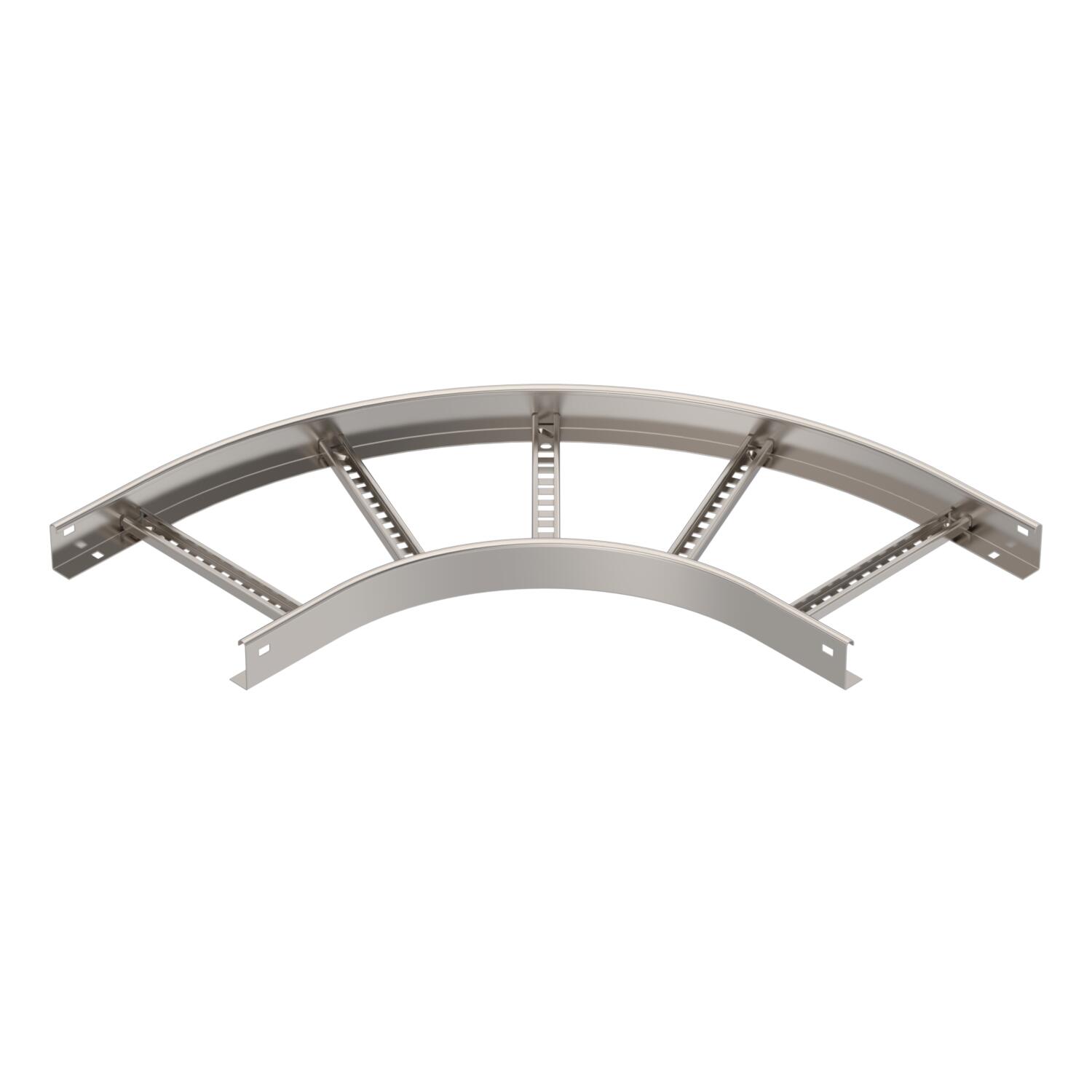

Product description90° bend, horizontal, with welded rung for all cable ladder types of 60 mm side height.
-
- Technical data
-
Technical data

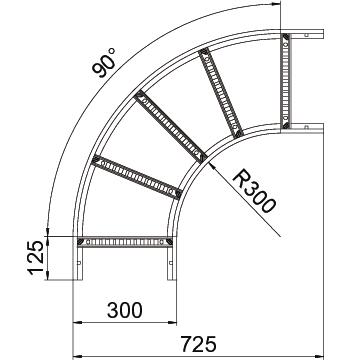

Bend (angle) 90° Change of direction Horizontal Colour stainless steel Connector version Without connectors Dimension 60x300 Dimension B 300 mm Dimension R 300 mm Height 60 mm Hinged no Maintain electrical functions no Material Stainless steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Bright, treated Version of the rungs Profile perforated Wide-span version no Width 300 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector A2
LVG 60 A2 6208846 10 piece - Downloads
-
