90° bend 50

morepic-1

morepic-2

90° bend

Item no. 6074901 | EAN 4012195453451

Item no. / Types	6074901 / LTS B DD

Width	50 mm

Product description

Product description

90° bend, horizontal, for AZ small duct AZK 050 and luminaire support channel LTS 50.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Dimension	50x50
Height	50 mm
Material	Steel
Mounting perforation in base	no
NATO hole pattern	no

Plate thickness	1 mm
Rustproof steel, pickled	no
Side perforation	no
Surface	Strip galvanised zinc/aluminium, Double Dip
Wide-span version	no
Width	50 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
LTS B DD	50 mm	6074901	piece	1 piece

Downloads

Data sheet LTS B DD / 6074901 , 0.15MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LTS B DD / 6074901 , 0.13MB , pdf

Mounting instructions Mounting instructions, luminaire support systems , 0.04MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

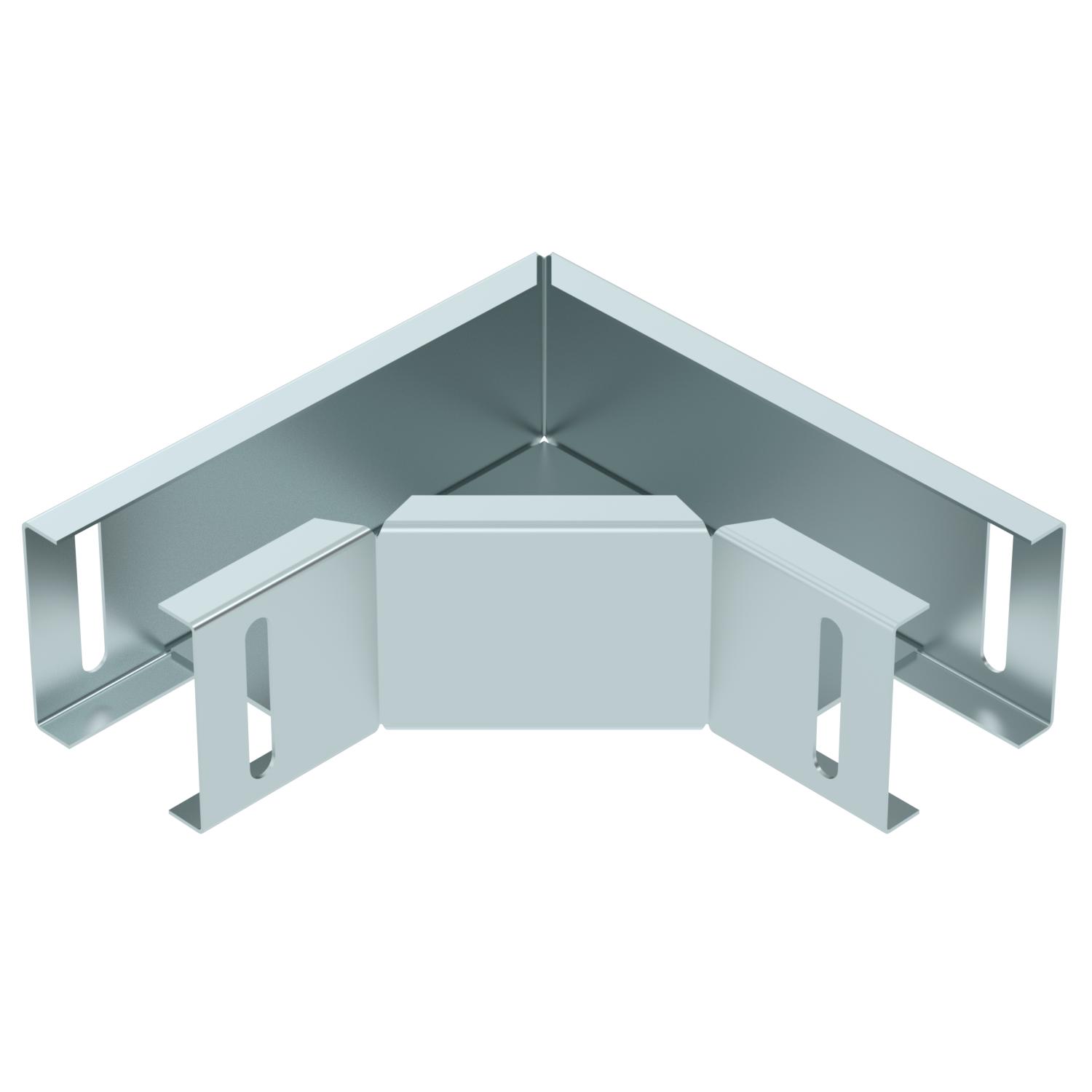

Product graphic LTS B DD / 6074901, 48.19 kB, jpg

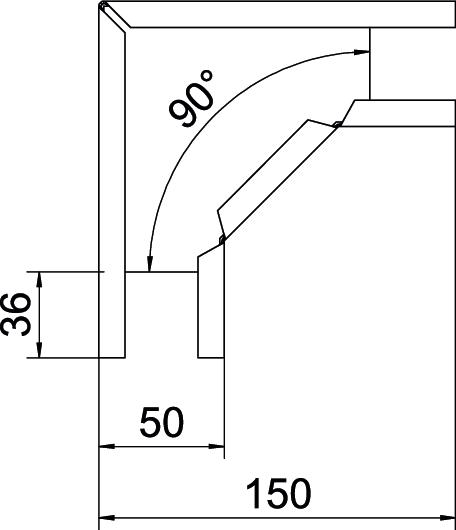

Scale drawing LTS B DD / 6074901, 18.50 kB, jpg

LTS B DD / 6074901

6074901_KSTP1.stp, 389.80 kB
