90° bend 160 FT 200
morepic-1 morepic-2 video-1

90° bend 160 FT

Item no. 6098730 | EAN 4012196335534

Product description
Product description

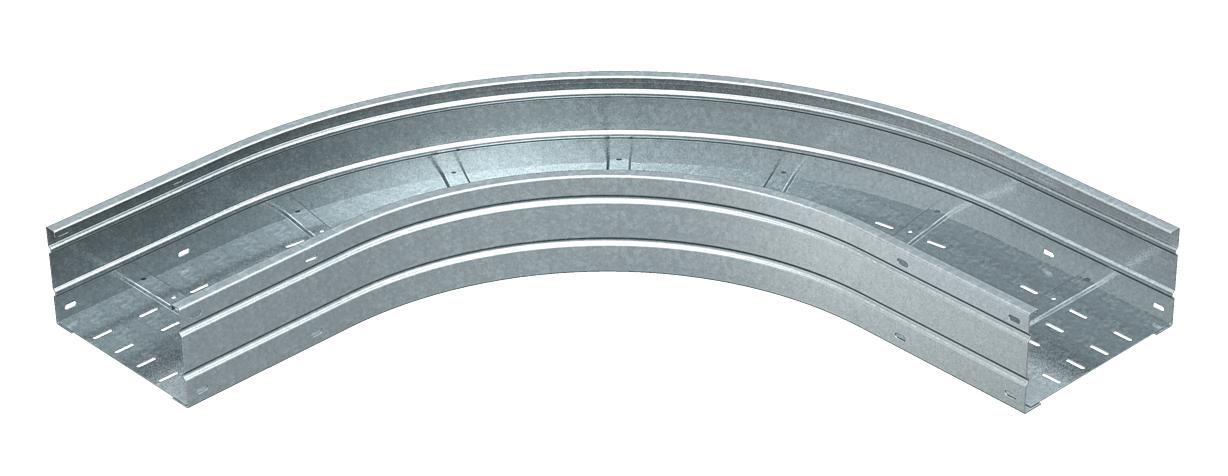

90° bend, horizontal, for all wide span cable trays of 160 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wide span cable tray, side height, 160 mm
Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal
Colour zinc
Connector version Without connectors

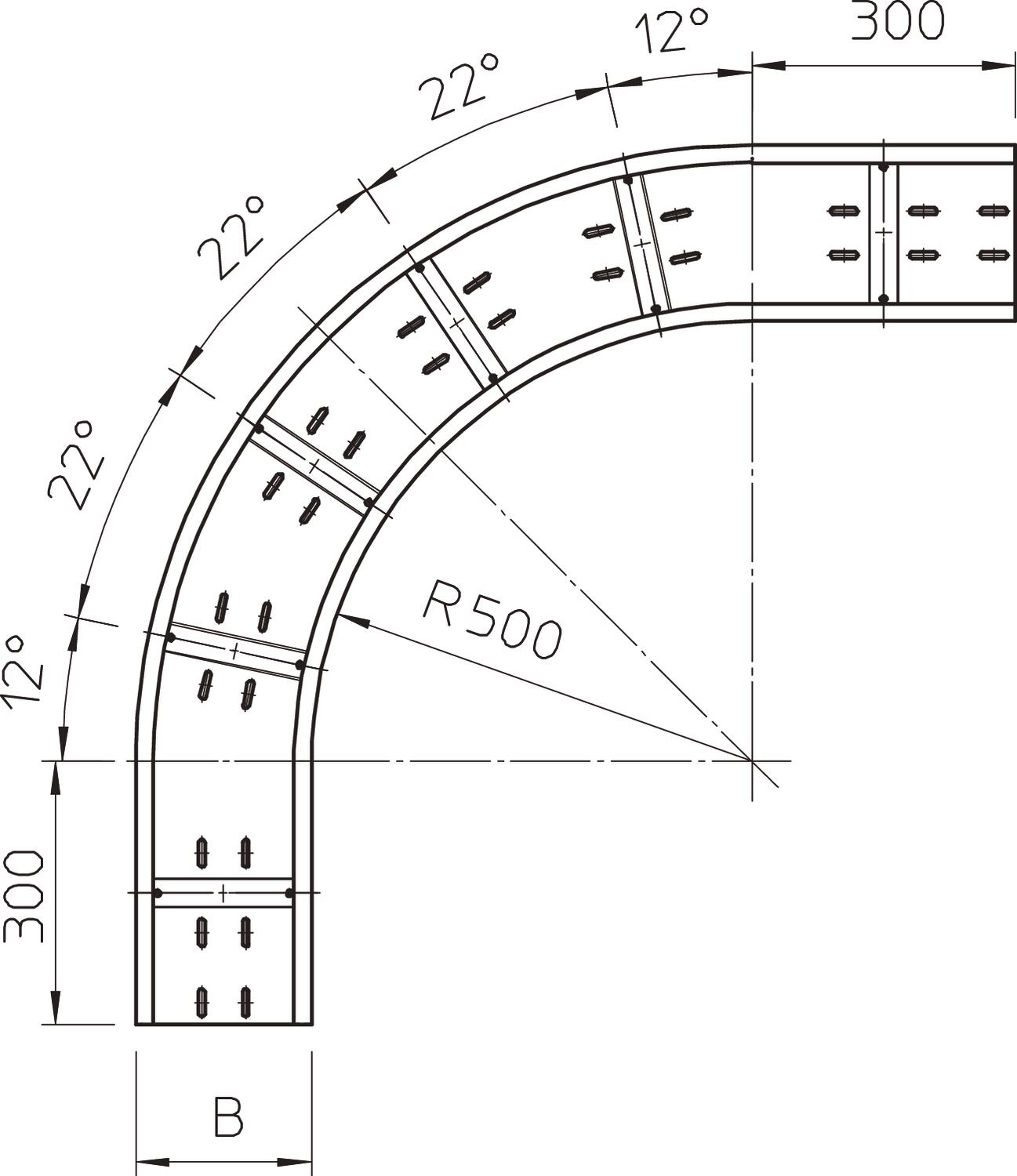

Dimension 160x200
Dimension B 200 mm
Dimension R 500 mm
Height 160 mm
Material Steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 2 mm
Rustproof steel, pickled no
Side perforation no
Surface Hot-dip galvanised
Type of connector, cable support system Screwed
Wide-span version yes
Width 200 mm
All types

All types

Types Width Item no. Quantity SSU
WRB 90 162 FT 200 mm 6098730
1 piece
WRB 90 163 FT 300 mm 6098734
1 piece
WRB 90 164 FT 400 mm 6098738
1 piece
WRB 90 165 FT 500 mm 6098742
1 piece
WRB 90 166 FT 600 mm 6098746
1 piece
Downloads

Download

EU declaration of conformity WRB 90 162 FT / 6098730 , 0.11MB , pdf
Download
UK Declaration of Conformity WRB 90 162 FT / 6098730 , 0.09MB , pdf
Download
REACH Declaration of conformity WRB 90 162 FT / 6098730 , 0.12MB , pdf
Download
RoHS Declaration of conformity WRB 90 162 FT / 6098730 , 0.12MB , pdf
Download

Download

WRB 90 162 FT / 6098730
