Note: This article is discontinued.

90° bend 110 FT

Item no. 7127413 | EAN 4012196248414

7127413 / RB 90 140 FT
400 mm
Steel
Hot-dip galvanised
Product description
Product description

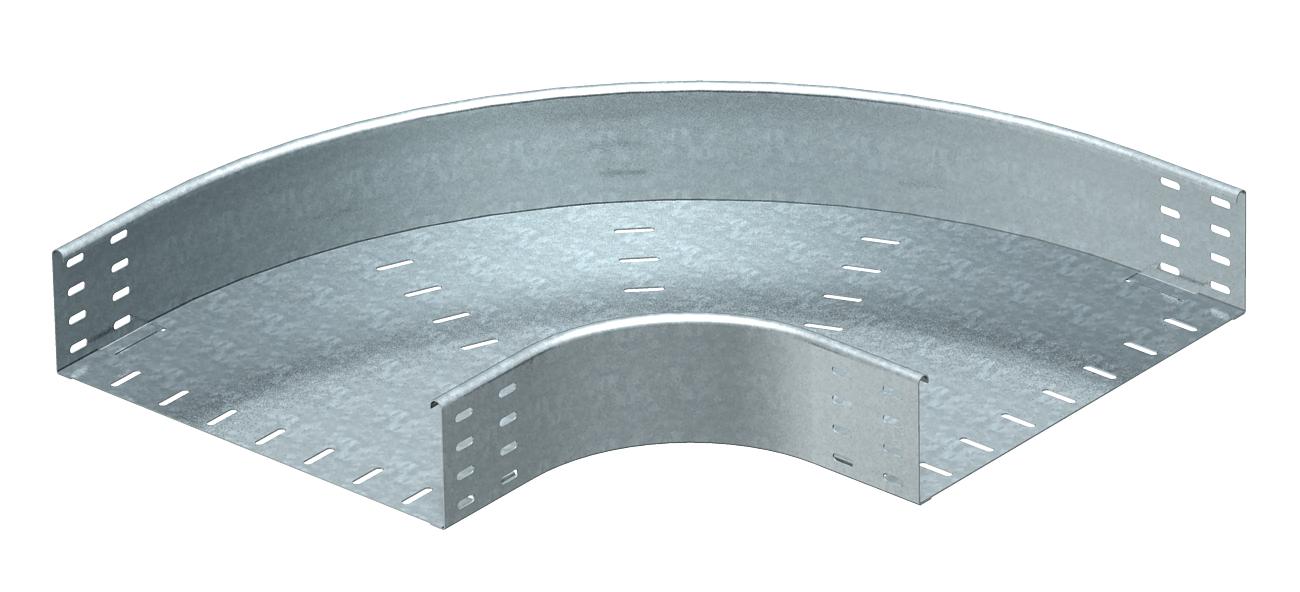

90° bend, horizontal, for all cable tray types of 110 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal
Connector version Without connectors

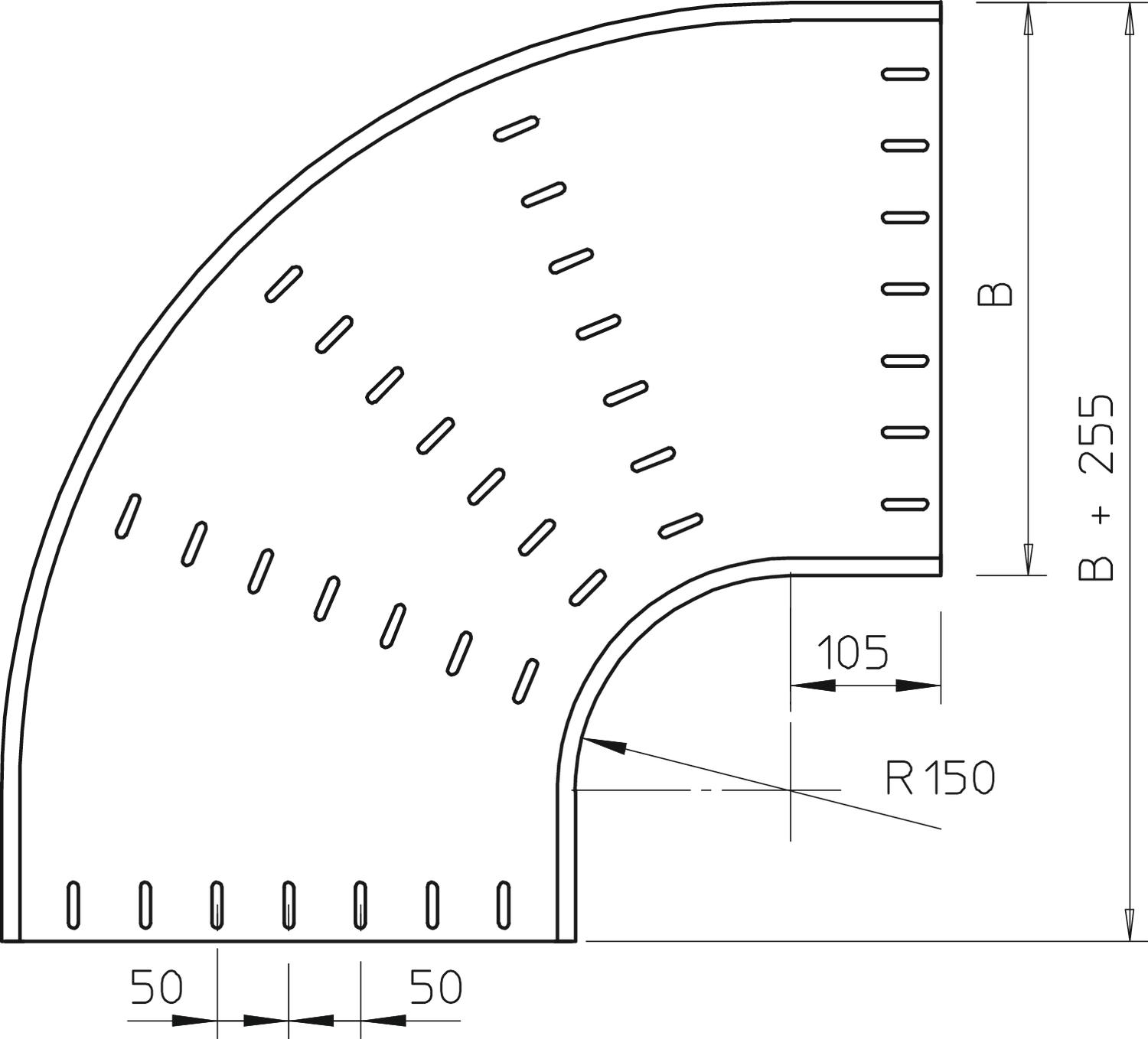

Dimension 110x400
Dimension B 400 mm
Dimension R 150 mm
Height 4 in
Height 110 mm
Maintain electrical functions no
Material Steel
Mounting perforation in base no
NATO hole pattern no
Rustproof steel, pickled no
Side perforation no
Surface Hot-dip galvanised
Type of connector, cable support system Screwed
Wide-span version no
Width 400 mm
Width 16 in
With cover no
All types

All types

Types Width Material Surface Item no. Quantity SSU
RB 90 140 FT 400 mm Steel Hot-dip galvanised 7127413
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F Truss-head bolt with flange nut F FRSB 6x12 F 6406122
100 piece
Downloads

Download

EU declaration of conformity RB 90 140 FT / 7127413 , 0.10MB , pdf
