90° bend 110 FT
Item no. 6225144 | EAN 4012196443949
- Product description
-
Product description
90° bend, horizontal, with welded rung for all cable ladder types of 110 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Without connectors Dimension 110x300 Hinged no Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Hot-dip galvanised Version of the rungs Profile perforated Wide-span version no Dimensions

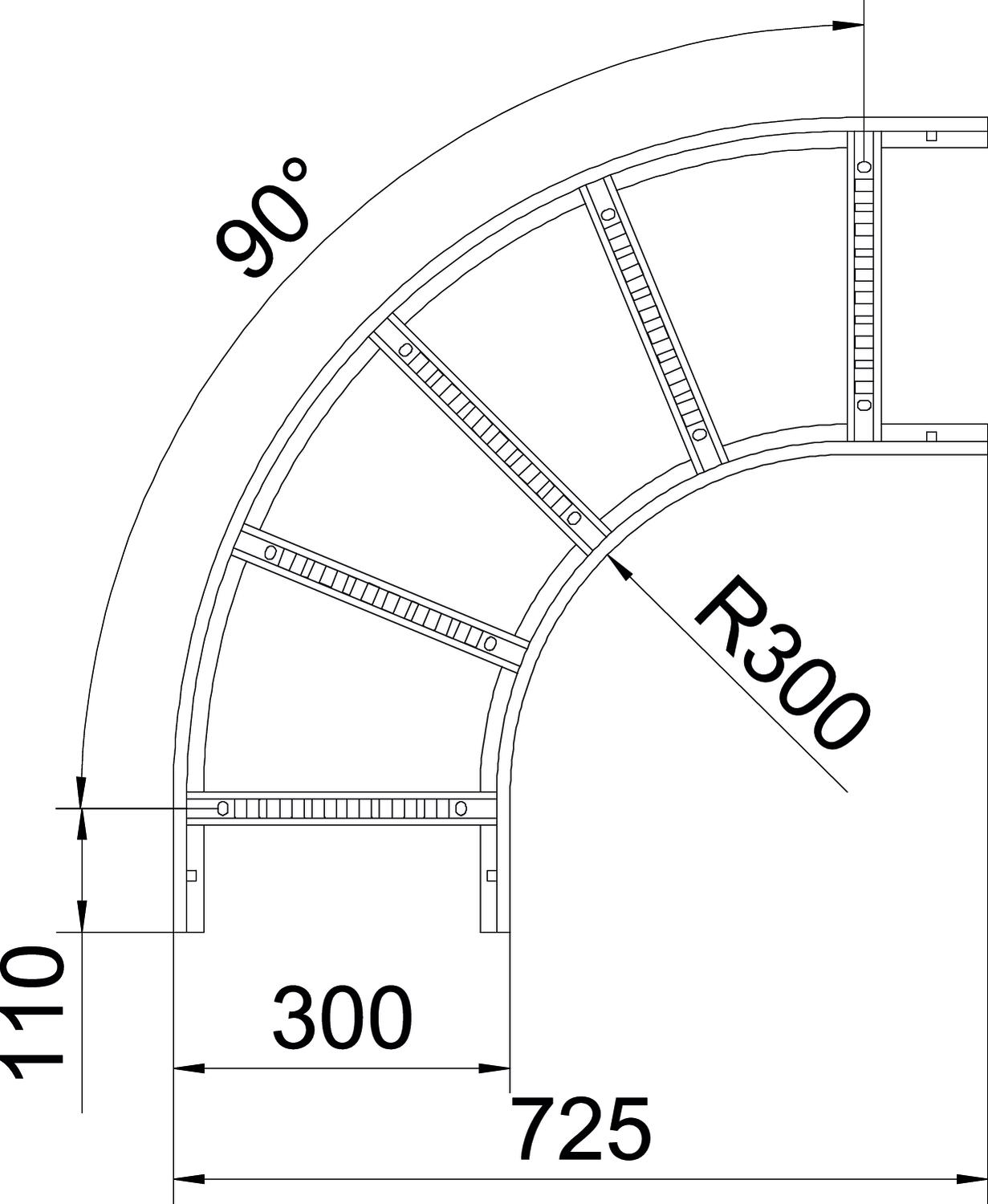

Dimension B 300 mm Dimension R 300 mm Height 110 mm Width 300 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FT
LVG 110 FT 6216548 10 piece - Downloads
-
Data sheet LB 90 1130 R3 FT / 6225144 , 0.22MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LB 90 1130 R3 FT / 6225144 , 0.16MB , pdfREACH Declaration of conformity LB 90 1130 R3 FT / 6225144 , 0.12MB , pdfRoHS Declaration of conformity LB 90 1130 R3 FT / 6225144 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf
