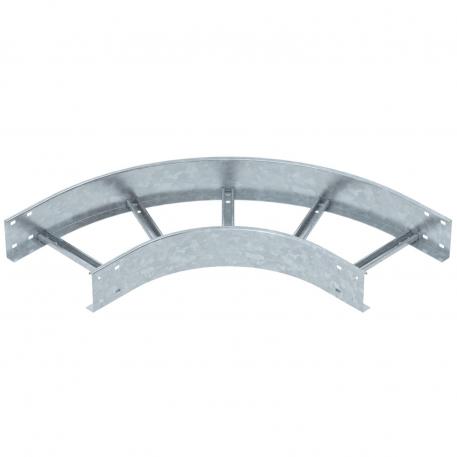

90° bend 110 FT

Item no. 6225172 | EAN 4012196443994

2 mm
Product description
Product description

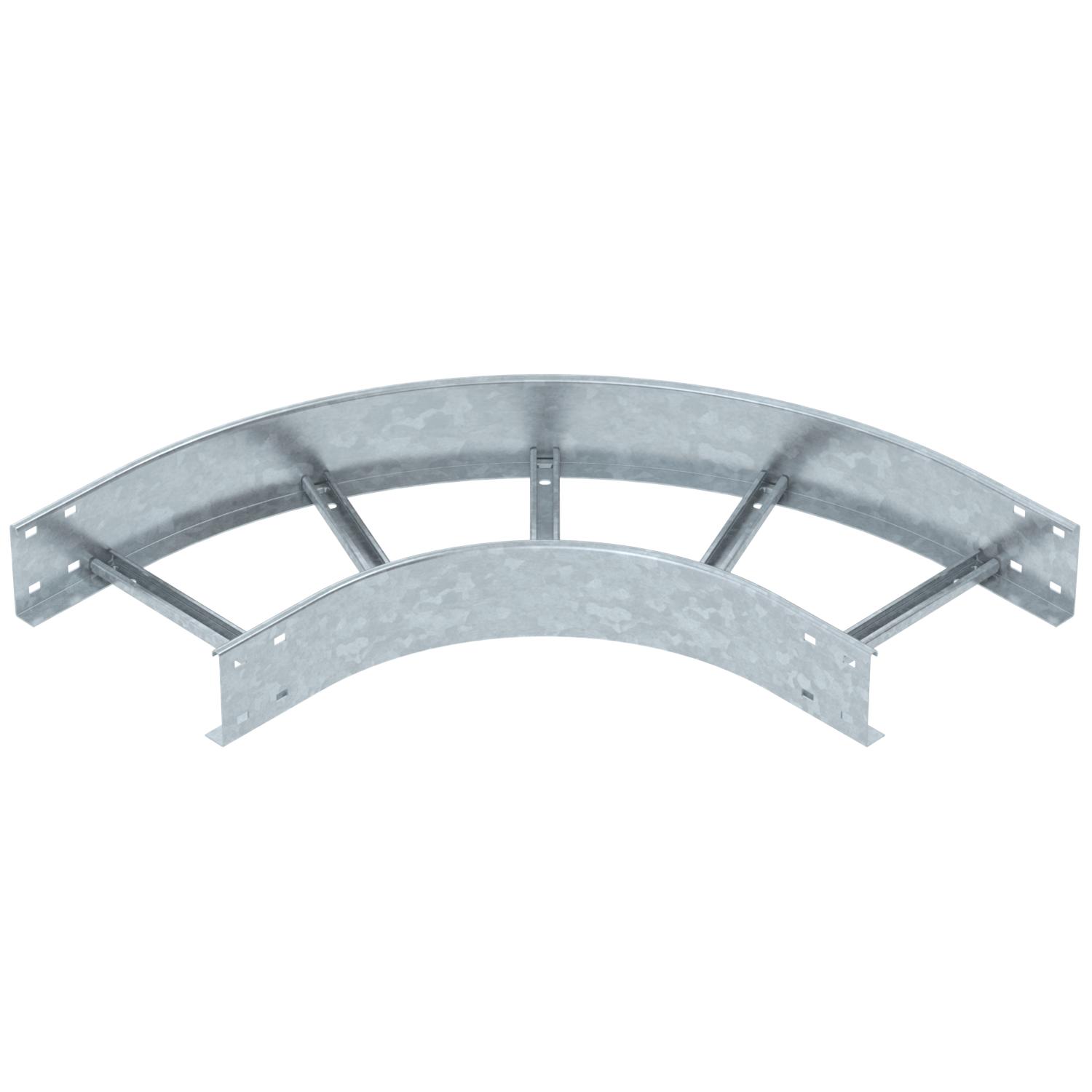

90° bend, horizontal, with welded rung for all cable ladder types of 110 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 110 mm
Technical data

Technical data

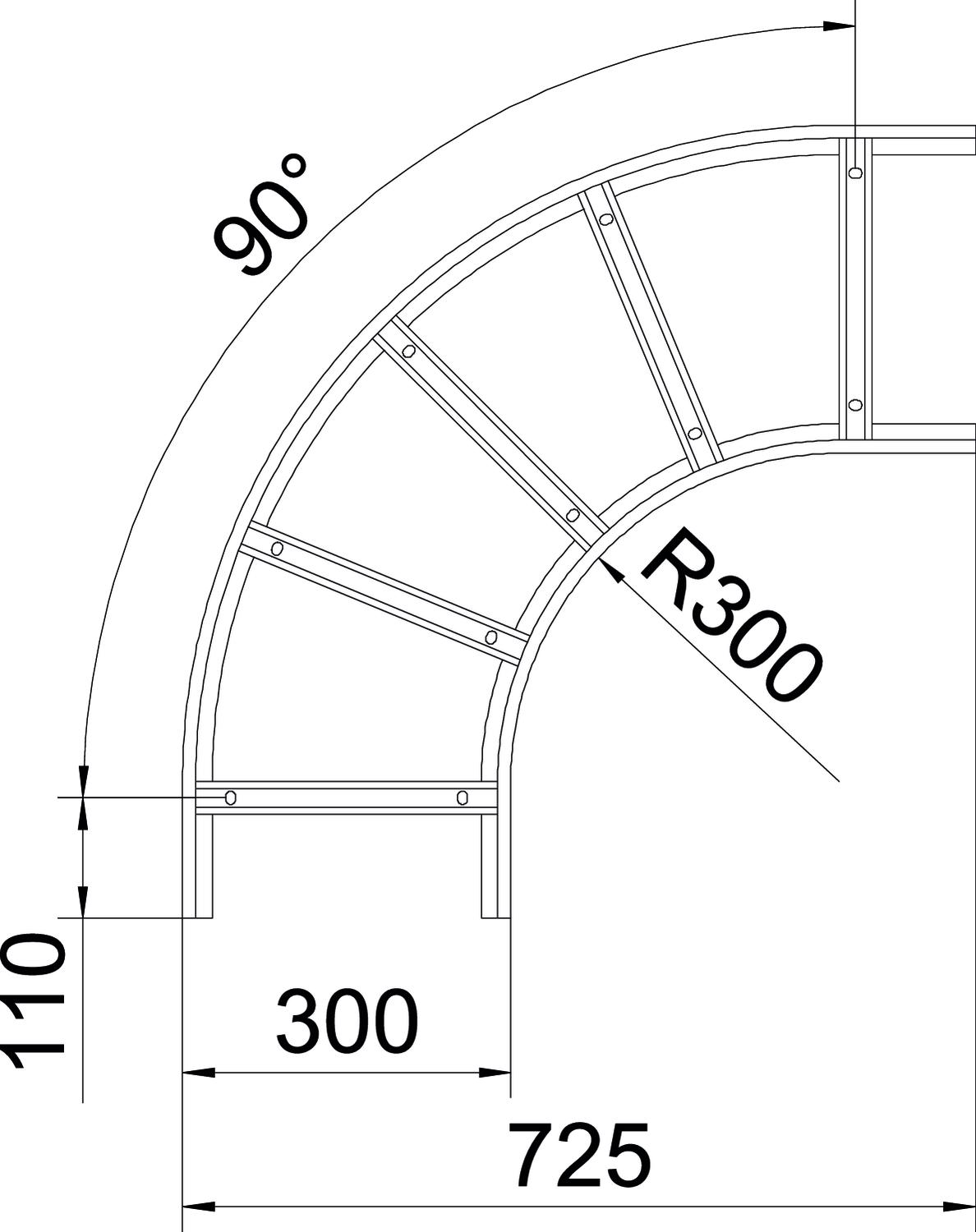

Bend (angle) 90°
Change of direction Horizontal
Colour zinc
Connector version Without connectors
Dimension 110x200
Dimension B 200 mm
Dimension R 200 mm
Height 110 mm
Hinged no
Maintain electrical functions no
Material Steel
Rail thickness 2 mm
Rustproof steel, pickled no
Side perforation no
Side rail version Flat profile
Surface Hot-dip galvanised
Version of the rungs Profile unperforated
Wide-span version no
Width 200 mm
All types

All types

Types Width Rail thickness Item no. Quantity SSU
SLB 90 1120R3 FT 200 mm 2 mm 6225172
1 piece
SLB 90 1130R3 FT 300 mm 2 mm 6225174
1 piece
SLB 90 1140R3 FT 400 mm 2 mm 6225176
1 piece
SLB 90 1150R3 FT 500 mm 2 mm 6225180
1 piece
SLB 90 1160R3 FT 600 mm 2 mm 6225182
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Straight connector FT Straight connector FT LVG 110 FT 6216548
10 piece
