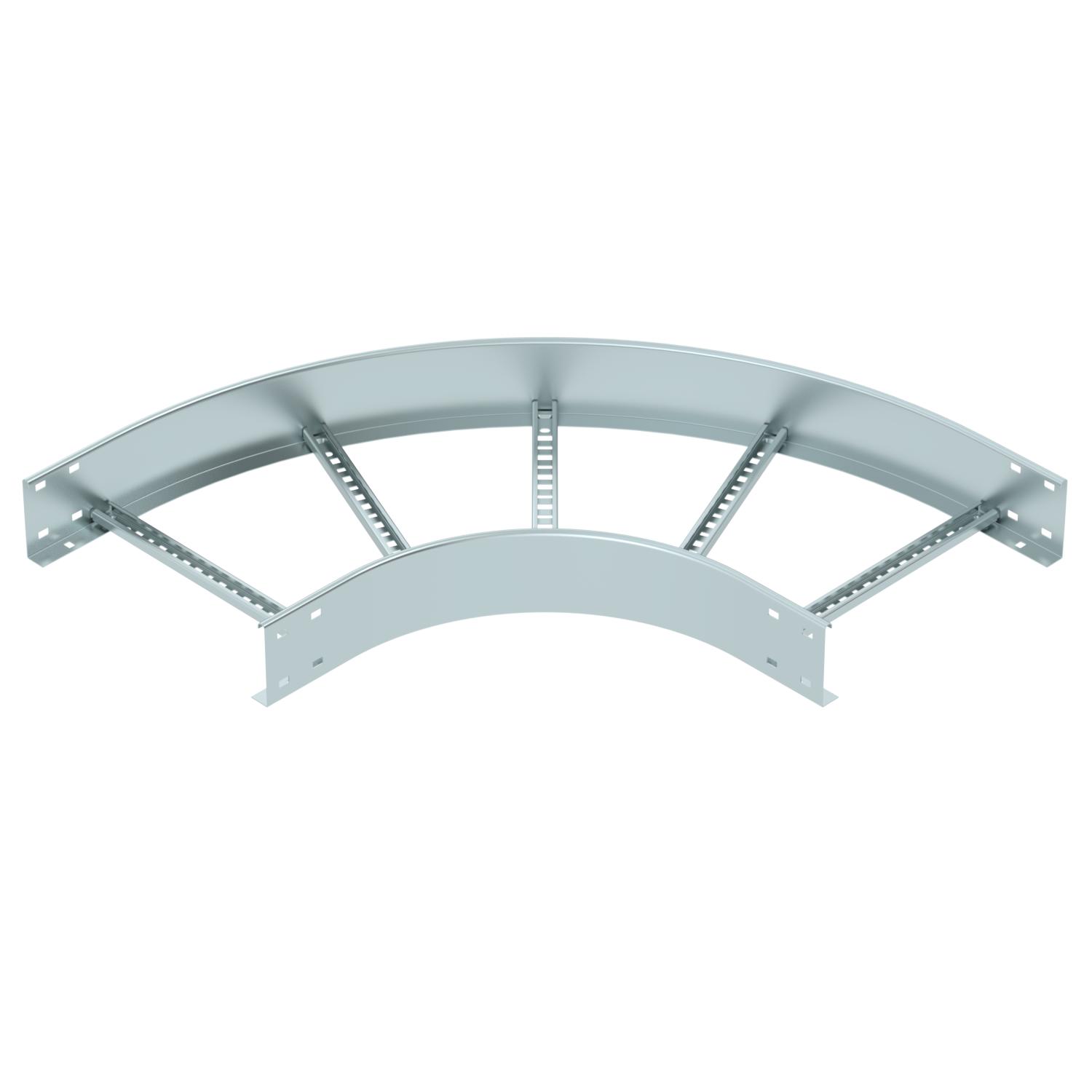

90° bend 110 FS
Item no. 6225126 | EAN 4012196443901
- Product description
-
Product description90° bend, horizontal, with welded rung for all cable ladder types of 110 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Colour zinc Connector version Without connectors Dimension 110x400 Dimension B 400 mm Dimension R 400 mm Height 110 mm Hinged no Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile perforated Wide-span version no Width 400 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FS
LVG 110 FS 6216545 10 piece - Downloads
-
Data sheet LB 90 1140 R3 FS / 6225126 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity LB 90 1140 R3 FS / 6225126 , 0.10MB , pdfUK Declaration of Conformity LB 90 1140 R3 FS / 6225126 , 0.09MB , pdfREACH Declaration of conformity LB 90 1140 R3 FS / 6225126 , 0.12MB , pdfRoHS Declaration of conformity LB 90 1140 R3 FS / 6225126 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
