90° bend 110 A4

Item no. 6312550 | EAN 4012195910251

2 mm
Product description
Product description

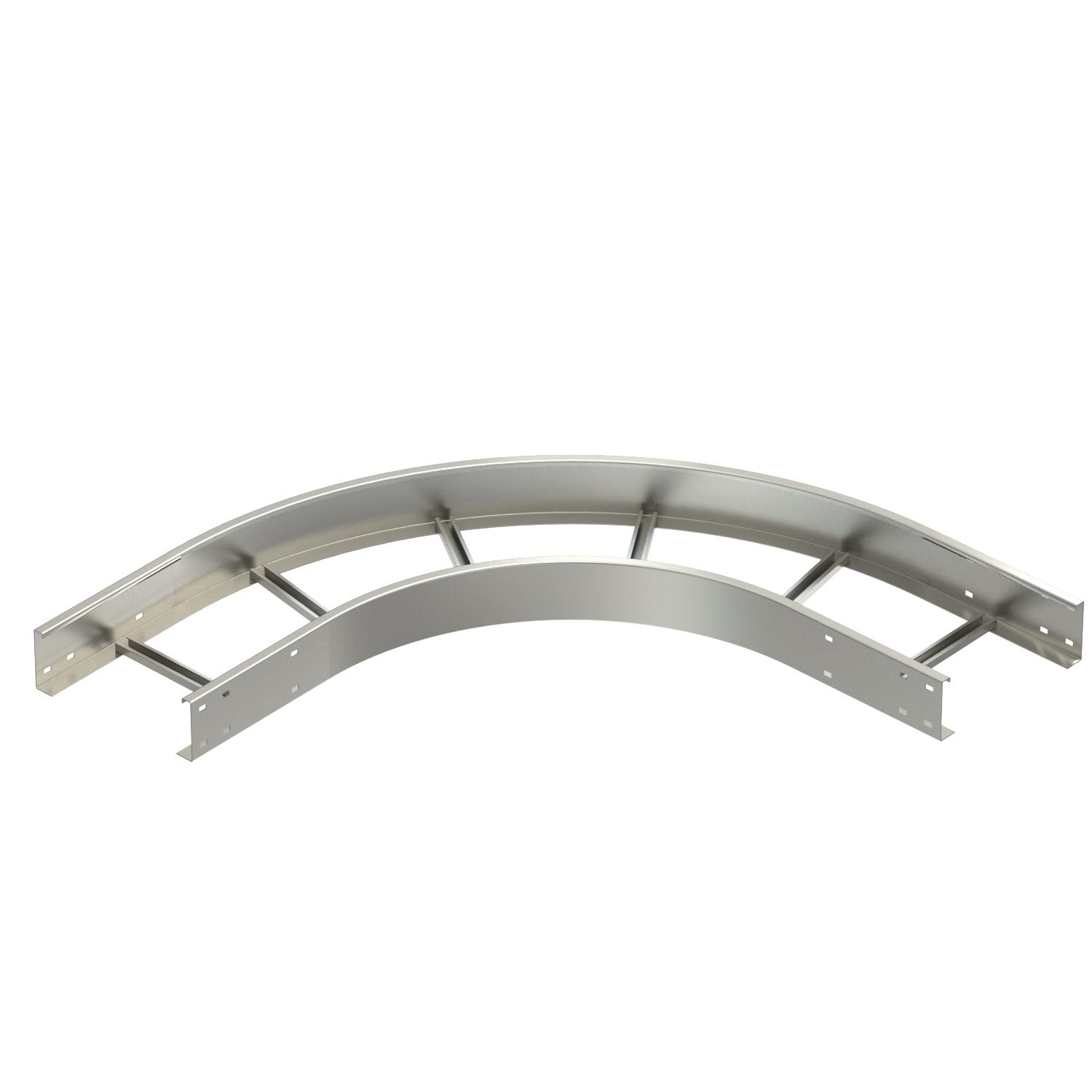

90° bend, horizontal, for all wide span cable ladders of 110 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wide span cable ladder, side height 110 mm
Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal
Colour stainless steel
Dimension 110x200
Dimension B 200 mm
Dimension R 200 mm
Height 110 mm
Maintain electrical functions no
Material Stainless steel
Rail thickness 2 mm
Rustproof steel, pickled no
Side perforation no
Surface Bright, treated
Version of the rungs Profile unperforated
Wide-span version yes
Width 200 mm
All types

All types

Types Width Rail thickness Item no. Quantity SSU
WLB 90 112 A4 200 mm 2 mm 6312550
1 piece
WLB 90 113 A4 300 mm 2 mm 6312552
1 piece
WLB 90 114 A4 400 mm 2 mm 6312554
1 piece
WLB 90 115 A4 500 mm 2 mm 6312556
1 piece
WLB 90 116 A4 600 mm 2 mm 6312558
1 piece
