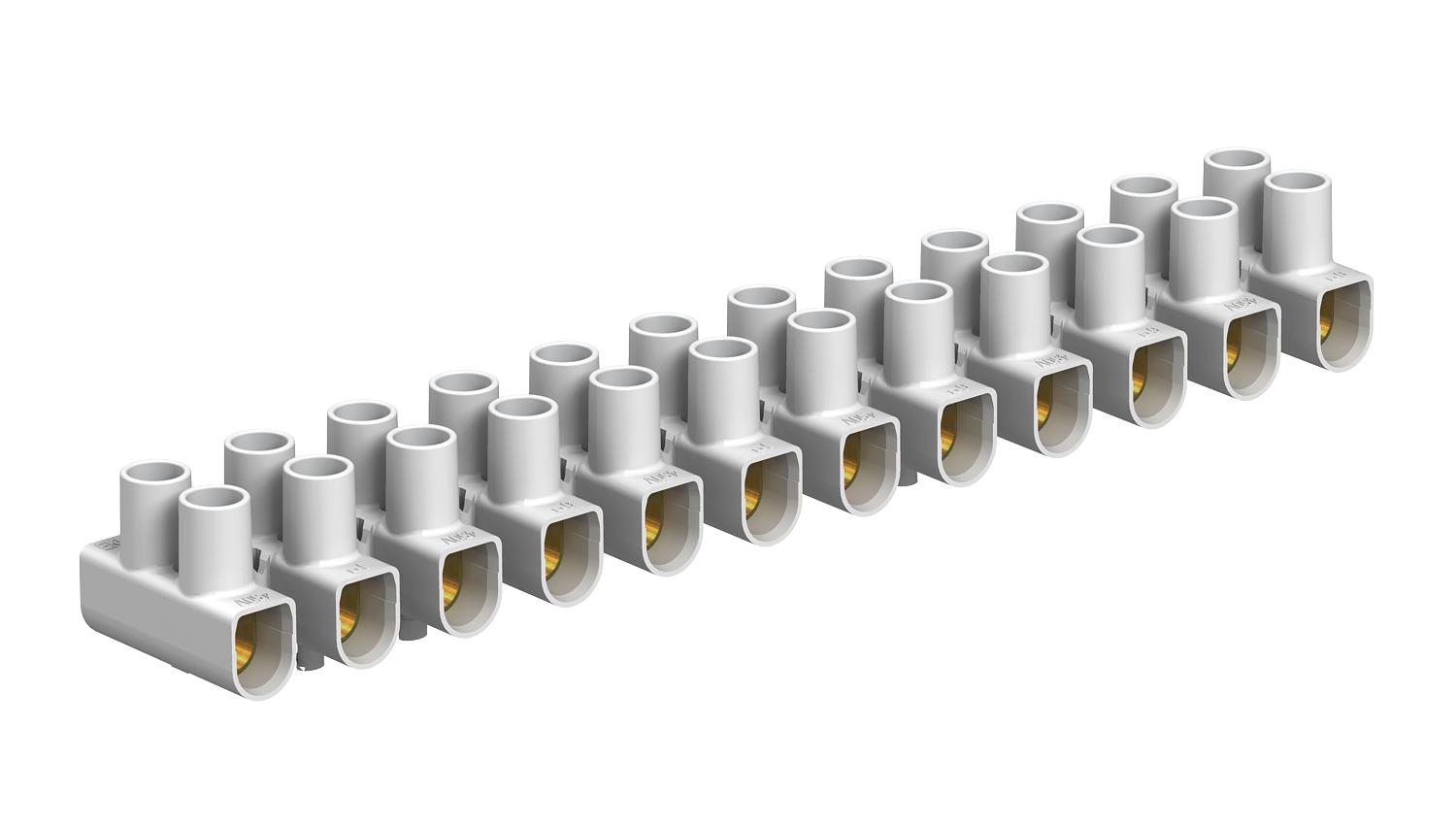

6 mm² series connectors, polypropylene

Item no. 2056224 | EAN 4012195702559

12
6 mm²
450 V
Product description

Product description

Tested according to EN 60998.

Steel terminals, steel screws, electrogalvanised, 12-pin, individual terminals detachable from strips using "twist'n'pull".

Captive upwards screw.

Max. approved ambient temperature to EN 60998: –-5 to +80 °C.

Nominal cross-section 6 mm².

Nominal voltage 450 V.

Nominal current 41 A.

Max. connections on each side: 6 mm² single-wire or 4 mm² fine-wire.
  • AENOR, Producto Certificado, Spain
  • CEBEC, Belgium
  • KEMA-KEUR, Netherlands
  • Österreichischer Verband für Elektrotechnik, Austria
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • AFNOR Quality symbol of the French standardisation institute
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 850 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nominal cross-section 6 mm²
Technical data

Technical data

Ambient temperature 80 °C
Closing plate required no
Colour White
Connectable conductor cross-section, fine-wire without wire-end ferrule, max. 4 mm²
Connectable conductor cross-section, fine-wire without wire-end ferrule, min. 1,5 mm²
Connectable conductor cross-section, single-wire, max. 6 mm²
Connectable conductor cross-section, single-wire, min. 1,5 mm²
Connection position Side
Cross-section Max. attachment each side: 6 mm² single-wire or 4 mm² fine-wire mm²
Dimension 6,0mm²
Drill hole spacing, centre 10 mm
Explosion-tested version no
Height 14,9 mm
Length 116,5 mm
Material Polypropylene
No. of terminals 12
Nominal cross-section, min. 6 mm²
Nominal current 41 A
Nominal voltage 450 V
Number of screwless terminals per pole 2
Permitted temperature range, max. 80 °C
Permitted temperature range, min. -5 °C
Pole number 12
Suitable for flexible conductors yes
Suitable for multi-wire conductors yes
Suitable for solid conductors yes
Transparent no
Version of electrical connection 1 Screw connection
Version of electrical connection 2 Screw connection
Width 18,9 mm
All types

All types

Types No. of terminals Nominal cross-section, min. Nominal voltage Colour Item no. Quantity SSU
74 CE WS/EKL 1 S 12 6 mm² 450 V White 2056224
10 piece
74 CE SW/EKL 1 S 12 6 mm² 450 V Black 2056232
10 piece
Downloads

Download

74 CE WS/EKL 1 S / 2056224
Download
