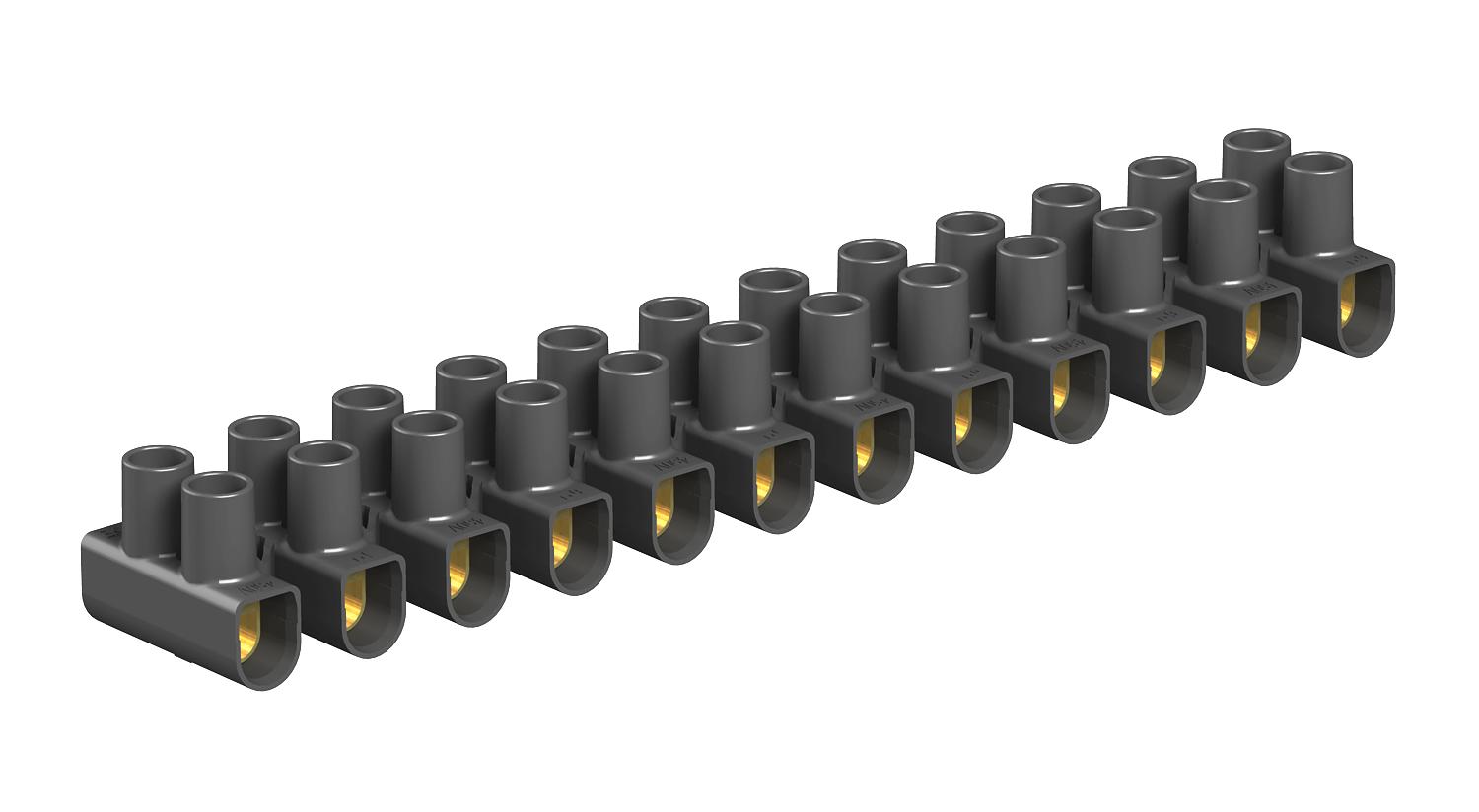

6 mm² series connectors, polypropylene
Item no. 2056232 | EAN 4012195879312
- Product description
-
Product description
Tested according to EN 60998.
Steel terminals, steel screws, electrogalvanised, 12-pin, individual terminals detachable from strips using "twist'n'pull".
Captive upwards screw.
Max. approved ambient temperature to EN 60998: –-5 to +80 °C.
Nominal cross-section 6 mm².
Nominal voltage 450 V.
Nominal current 41 A.
Max. connections on each side: 6 mm² single-wire or 4 mm² fine-wire.
-
- Technical data
-
Technical data

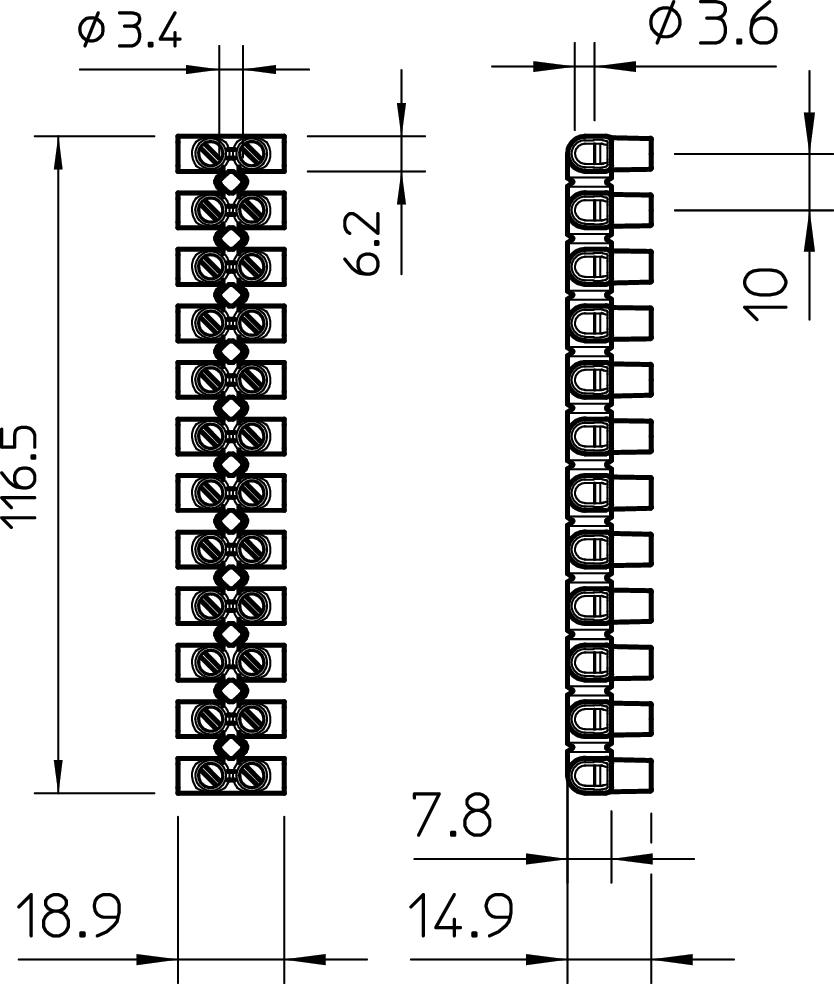

Ambient temperature 80 °C Closing plate required no Colour Black Connectable conductor cross-section, fine-wire without wire-end ferrule, max. 4 mm² Connectable conductor cross-section, fine-wire without wire-end ferrule, min. 1,5 mm² Connectable conductor cross-section, single-wire, max. 6 mm² Connectable conductor cross-section, single-wire, min. 1,5 mm² Connection position Side Cross-section Max. attachment each side: 6 mm² single-wire or 4 mm² fine-wire mm² Dimension 6,0mm² Drill hole spacing, centre 10 mm Explosion-tested version no Height 14,9 mm Length 116,5 mm Material Polypropylene No. of terminals 12 Nominal cross-section, min. 6 mm² Nominal current 41 A Nominal voltage 450 V Number of screwless terminals per pole 2 Permitted temperature range, max. 80 °C Permitted temperature range, min. -5 °C Pole number 12 Suitable for flexible conductors yes Suitable for multi-wire conductors yes Suitable for solid conductors yes Transparent no Version of electrical connection 1 Screw connection Version of electrical connection 2 Screw connection Width 18,9 mm - All types
