Note: This article is discontinued.

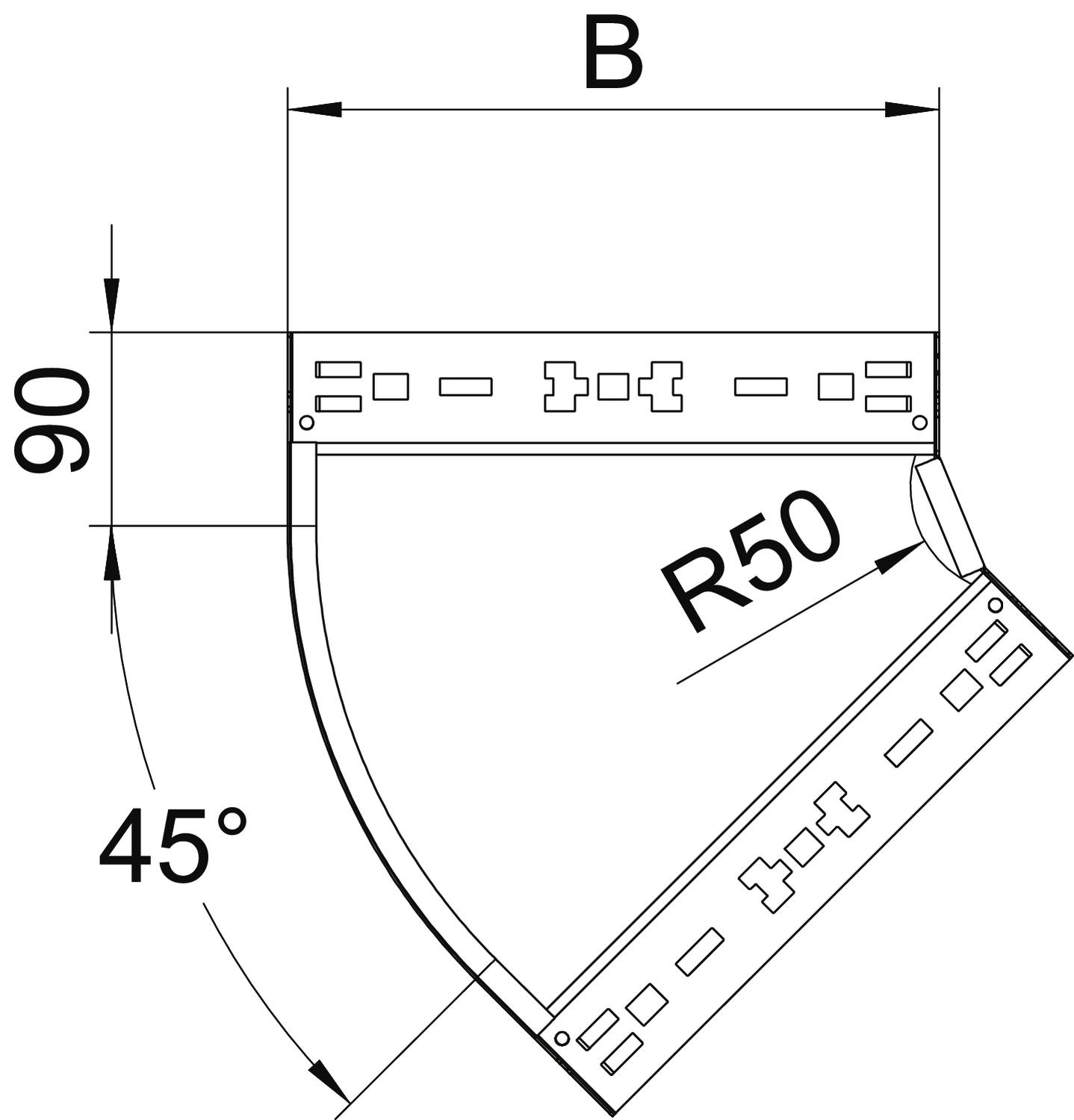

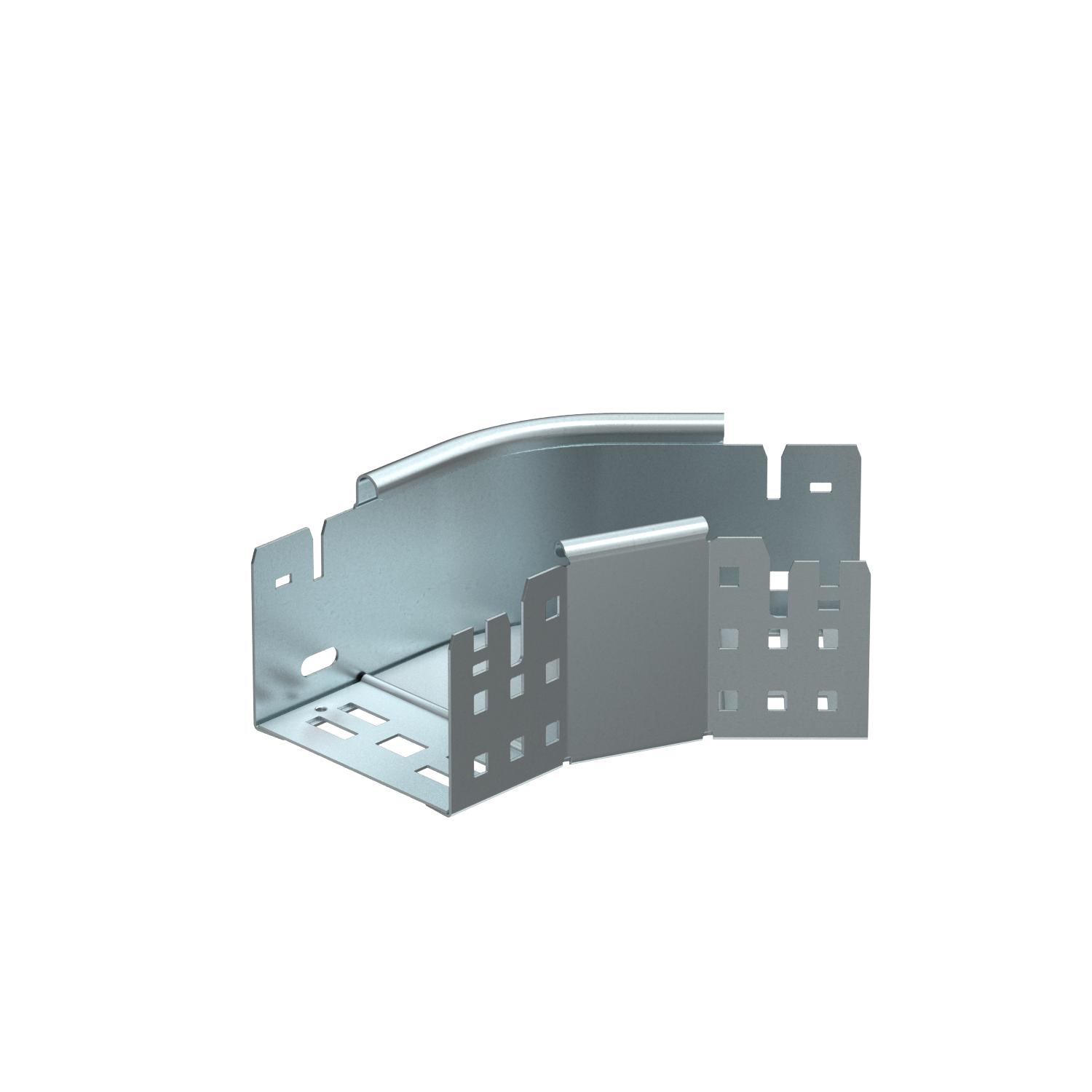

45° Magic bend 85 FS
Item no. 6041410 | EAN 4012195879541
- Product description
-
Product description45° bend with quick connector system. For all cable tray types of 85 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 45° Change of direction Horizontal Connector version Integrated connector Dimension 85x100 Dimension B 100 mm Height 85 mm Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1,25 mm Rustproof steel, pickled no Side perforation no Surface Strip galvanized Type of connector, cable support system Click fastening Wide-span version no Width 100 mm - All types
- Downloads
-
Data sheet RBM 45 810 FS / 6041410 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RBM 45 810 FS / 6041410 , 0.10MB , pdfREACH Declaration of conformity RBM 45 810 FS / 6041410 , 0.12MB , pdfRoHS Declaration of conformity RBM 45 810 FS / 6041410 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
