Note: This article is discontinued.

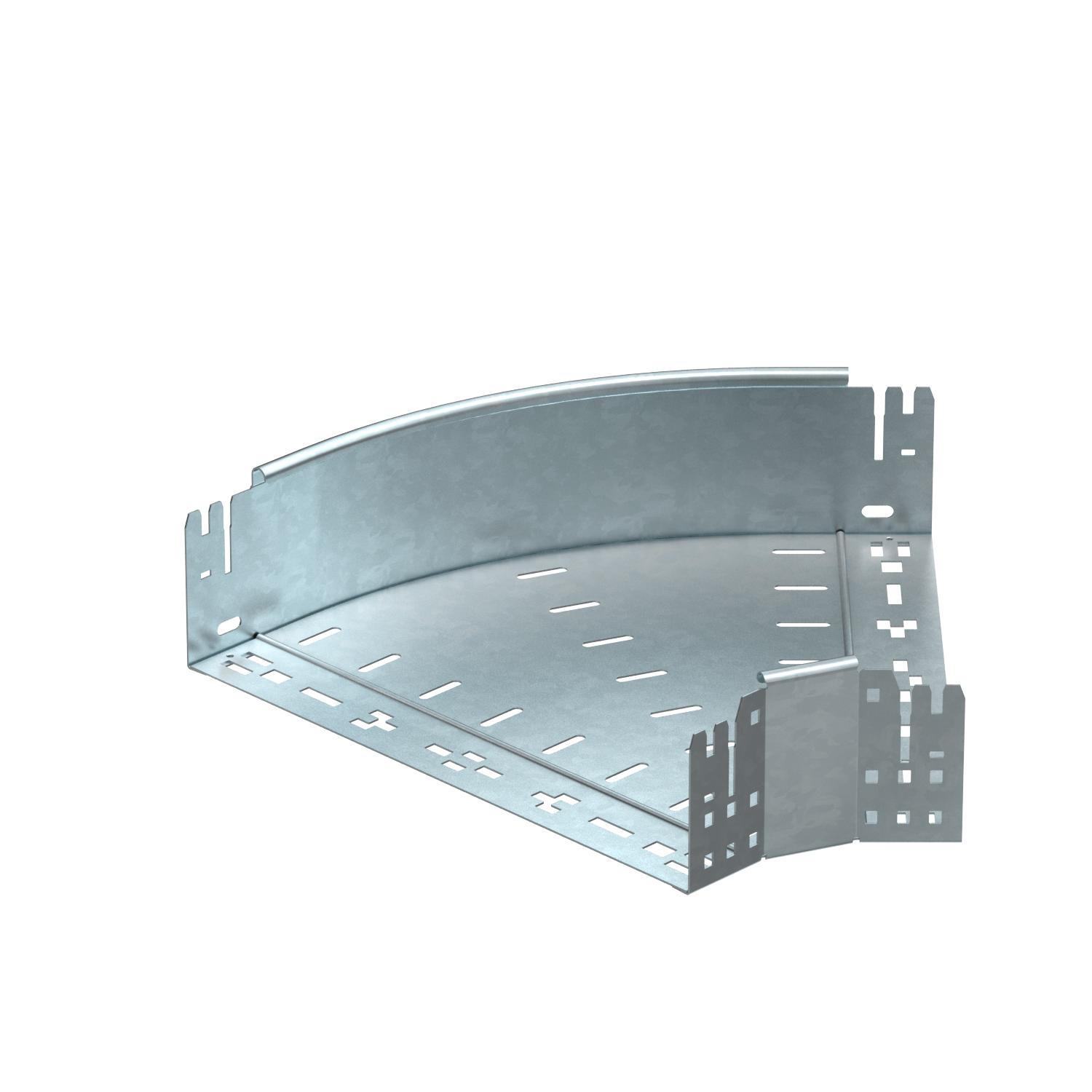

45° Magic bend 110 FT
Item no. 6041786 | EAN 4012195880318
- Product description
-
Product description45° bend with quick connector system. For all cable tray types of 110 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 45° Change of direction Horizontal Connector version Integrated connector Dimension 110x400 Dimension B 400 mm Height 110 mm Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1,25 mm Rustproof steel, pickled no Side perforation no Surface Hot-dip galvanised Type of connector, cable support system Click fastening Wide-span version no Width 400 mm - All types
-
All types
- Downloads
-
Data sheet RBM 45 140 FT / 6041786 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RBM 45 140 FT / 6041786 , 0.10MB , pdfREACH Declaration of conformity RBM 45 140 FT / 6041786 , 0.12MB , pdfRoHS Declaration of conformity RBM 45 140 FT / 6041786 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
