Note: This article is discontinued.

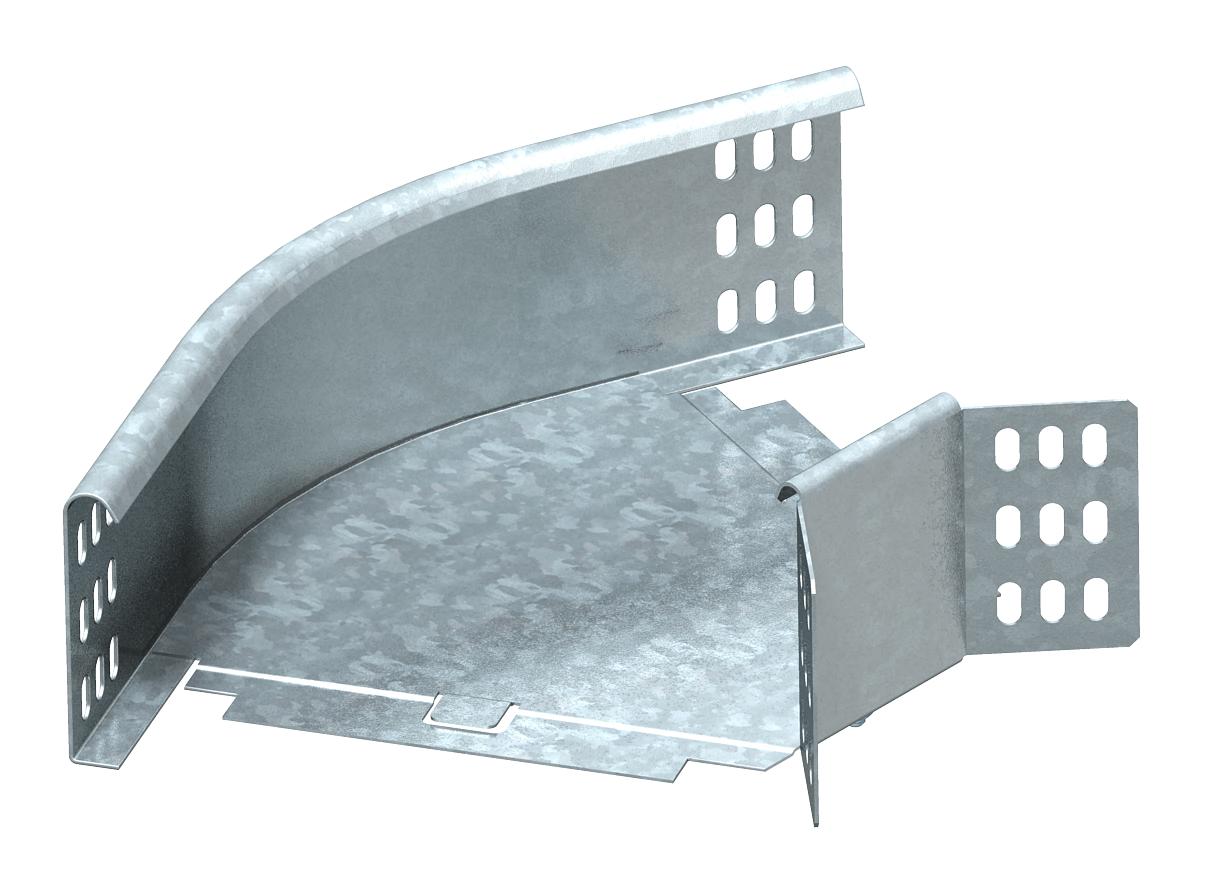

45° bend 85 FT
Item no. 7067313 | EAN 4012196991228
- Product description
-
Product description45° bend, horizontal, for all cable tray types of 85 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 45° Change of direction Horizontal Connector version Supplied connectors Dimension 85x300 Dimension B 300 mm Dimension R 50 mm Height 85 mm Height 3 in Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1 mm Rustproof steel, pickled no Side perforation no Surface Hot-dip galvanised Type of connector, cable support system Screwed Wide-span version no Width 12 in Width 300 mm - All types
- Downloads
-
Data sheet RB 45 830 FT / 7067313 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RB 45 830 FT / 7067313 , 0.10MB , pdfREACH Declaration of conformity RB 45 830 FT / 7067313 , 0.12MB , pdfRoHS Declaration of conformity RB 45 830 FT / 7067313 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
