Note: This article is discontinued.

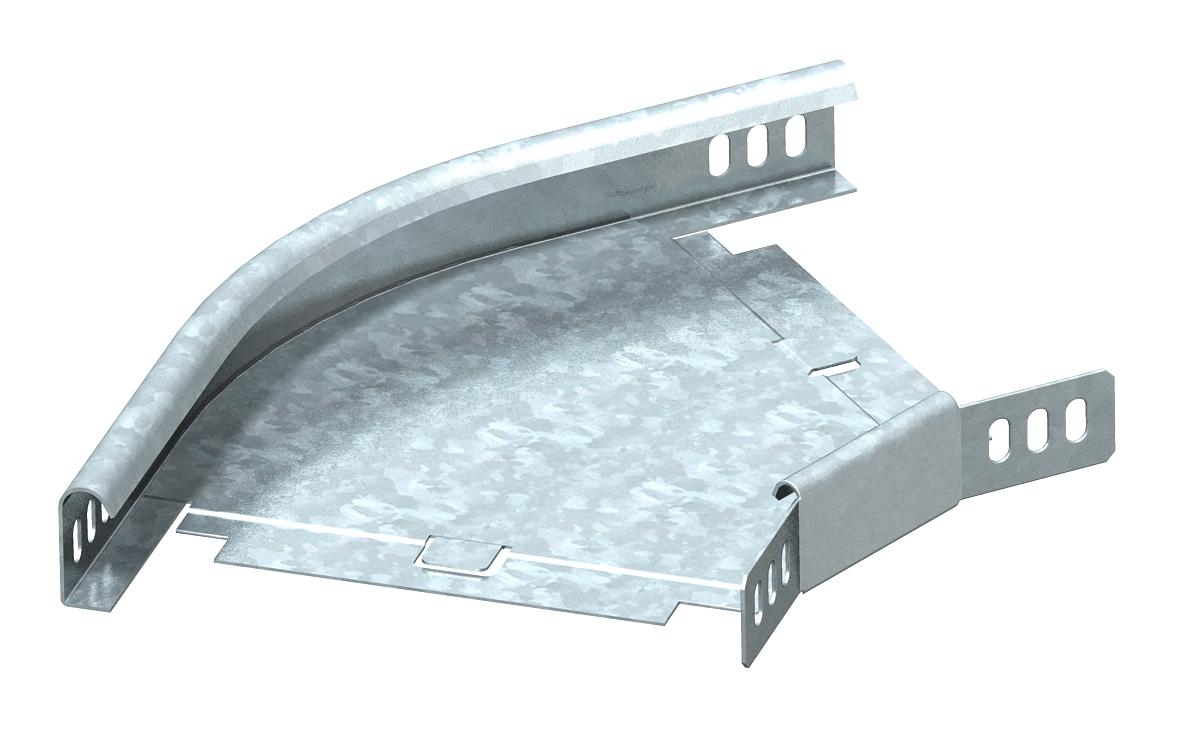

45° bend 35 FT
Item no. 7065167 | EAN 4012196926893
- Product description
-
Product description
45° bend, horizontal, for all cable tray types of 35 mm side height.
-
- Technical data
-
Technical data

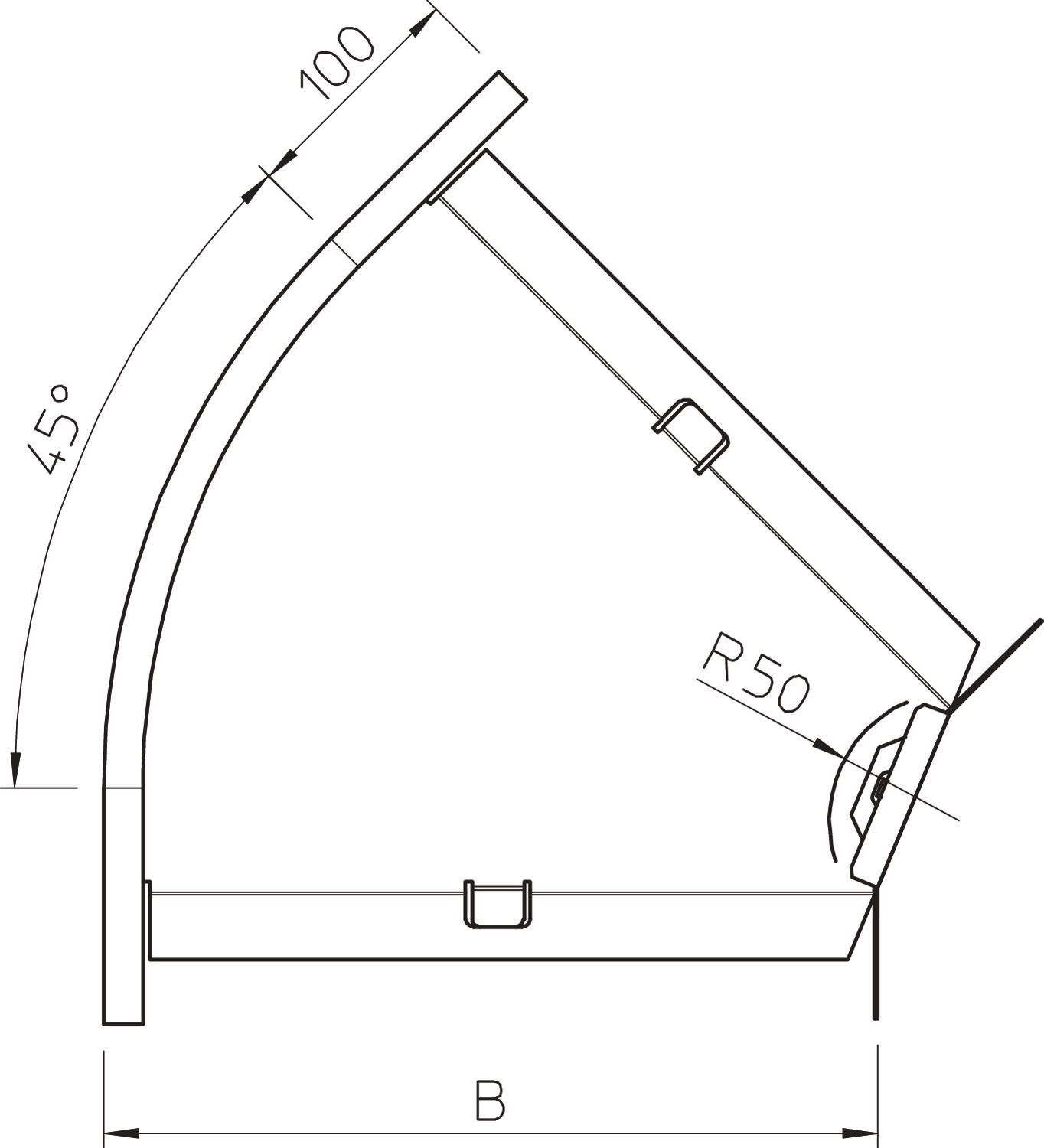

Bend (angle) 45° Change of direction Horizontal Connector version Supplied connectors Dimension 35x150 Dimension B 150 mm Dimension R 50 mm Height 35 mm Height 1 in Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Rustproof steel, pickled no Side perforation no Surface Hot-dip galvanised Type Bend, rigid Type of connector, cable support system Screwed Wide-span version no Width 6 in Width 150 mm - All types
- Downloads
-
Data sheet RB 45 315 FT / 7065167 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity RB 45 315 FT / 7065167 , 0.10MB , pdfUK Declaration of Conformity RB 45 315 FT / 7065167 , 0.09MB , pdfREACH Declaration of conformity RB 45 315 FT / 7065167 , 0.12MB , pdfRoHS Declaration of conformity RB 45 315 FT / 7065167 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
