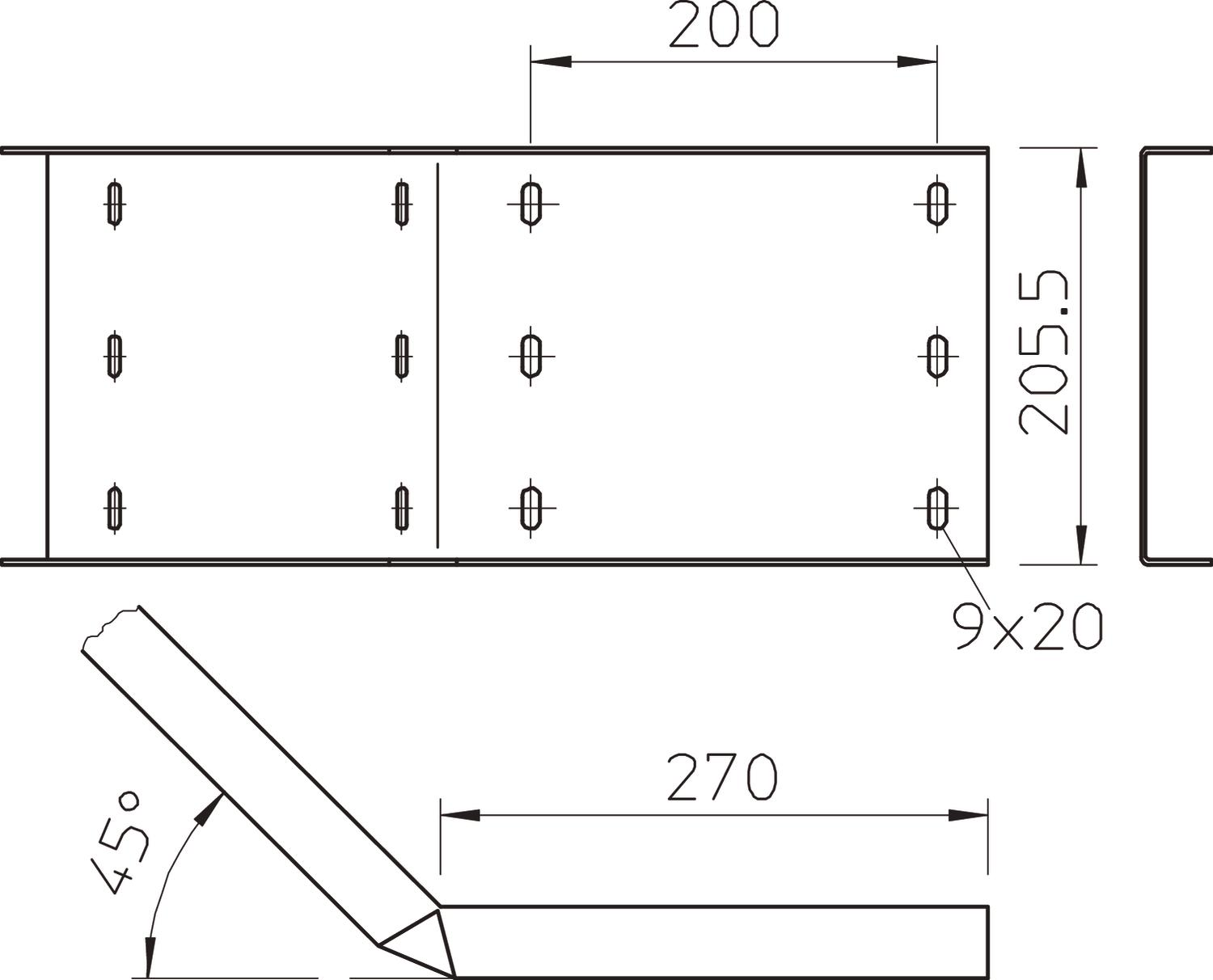

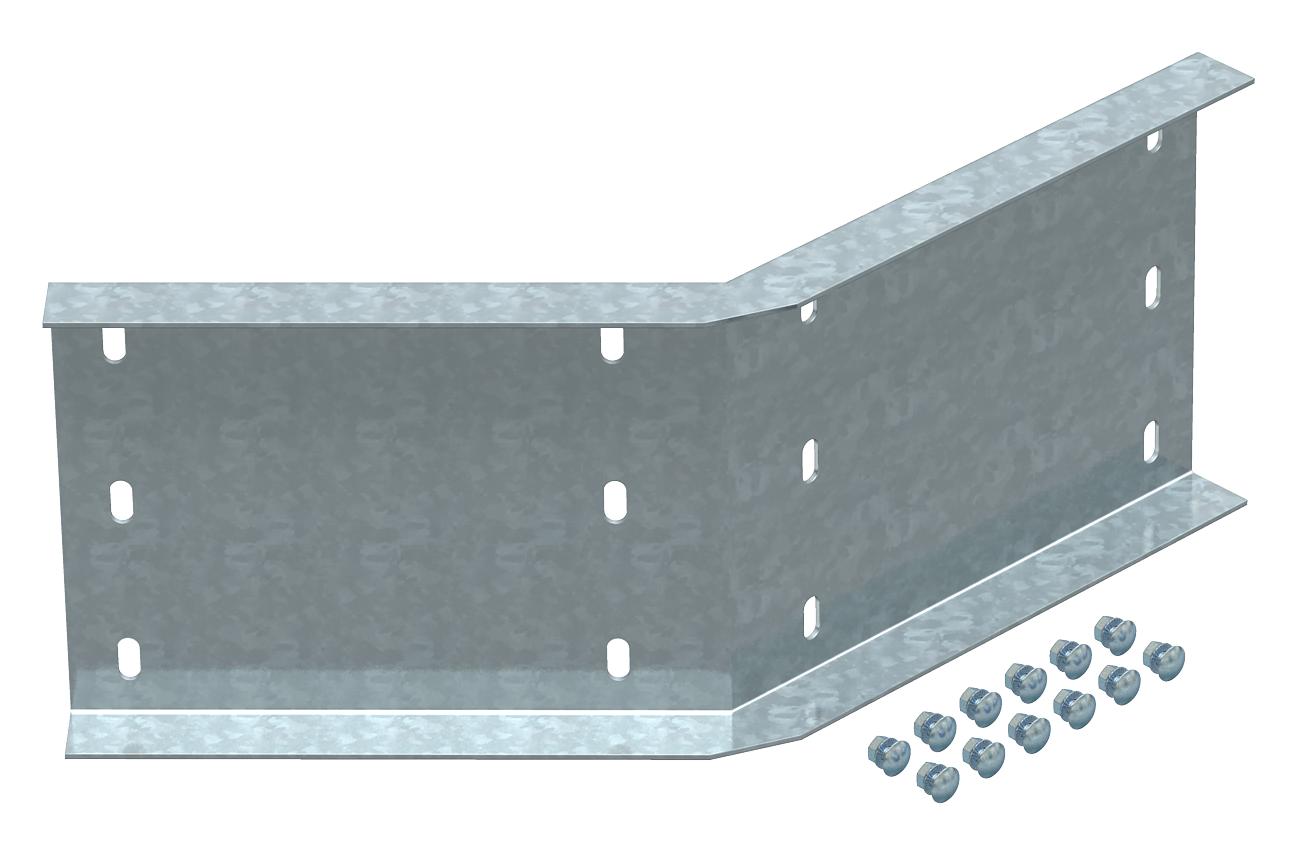

45° angle connector, horizontal, inner strut
Item no. 6232612 | EAN 4012196175819
- Product description
-
Product description
45° angle connector, horizontal, for wide span cable ladders of 200 mm side height.
-
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension 200x500 Maintain electrical functions no Material Steel Plate thickness 2,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for cable tray system height 200 mm Suitable for mesh cable tray no Surface Hot-dip galvanised Version for Angle connector Dimensions
Height 200 mm Length 540 mm Width 20 mm - All types
- Downloads
-
Data sheet WRWV 200 I FT / 6232612 , 0.17MB , pdfDeclaration of conformity WRWV 200 I FT / 6232612 , 0.15MB , pdfREACH Declaration of conformity WRWV 200 I FT / 6232612 , 0.12MB , pdfRoHS Declaration of conformity WRWV 200 I FT / 6232612 , 0.12MB , pdf
