3-wire connection cable, PVC, cross-section 2.5 mm², Cable length 1 m, black 1000 | 3 | 2.5
morepic-1 morepic-2

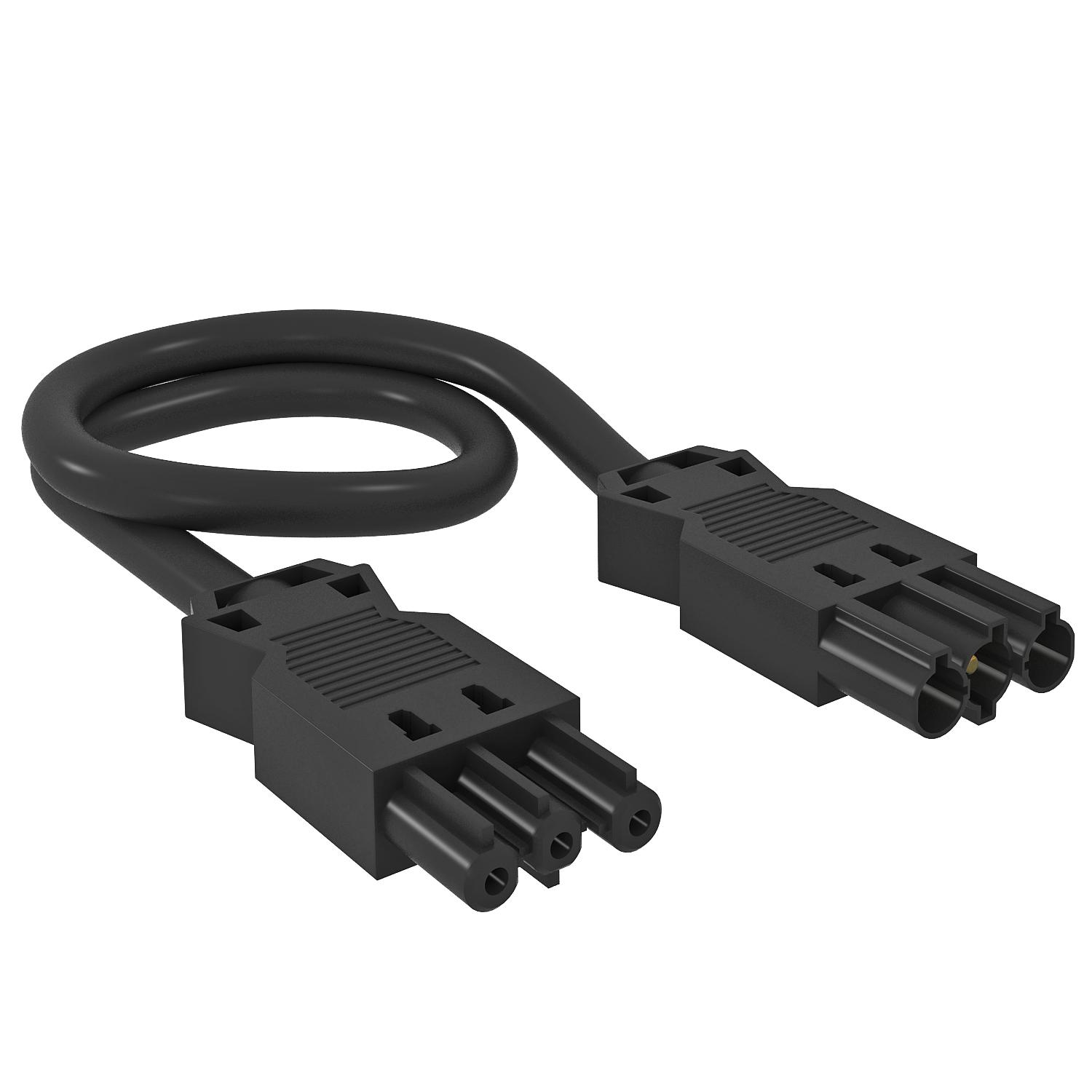

3-wire connection cable, PVC, cross-section 2.5 mm², Cable length 1 m, black

Item no. 6108150 | EAN 4012195123064

3
2.5 mm²
Product description
Product description
Connection cable 3 x 2.5 mm² in the version socket – connector with GST18i connection system.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

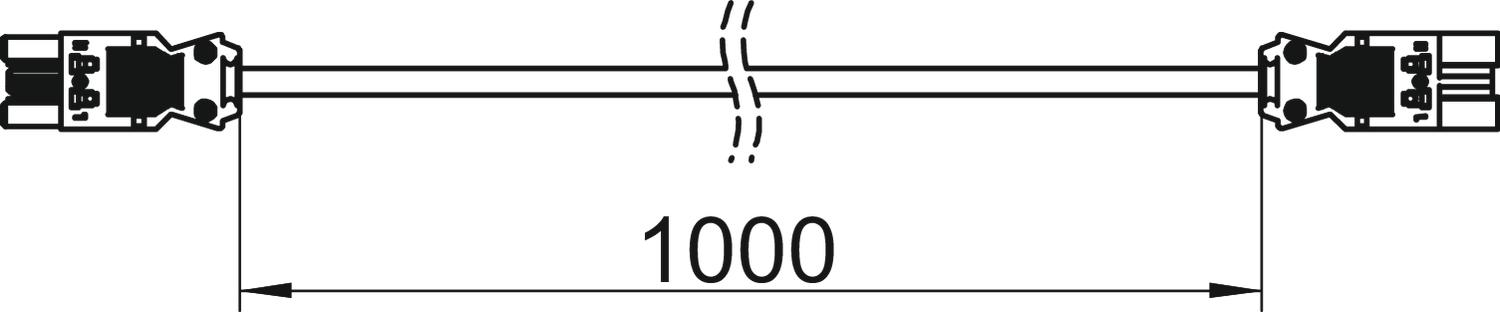

Cable length 1000 mm
Colour Black
Cross-section 2.5 mm²
Dimension L1000mm
Halogen-free no
Nominal current 16 A
Nominal voltage 250 V
Number of poles 3
Protection rating IP40
Version, page 1 socket
Version, page 2 Connector
All types

All types

Types Cable length Number of poles Cross-section Item no. Quantity SSU
VL-3Q2.5 1 SW 1000 mm 3 2.5 mm² 6108150
1 piece
VL-3Q2.5 3 SW 3000 mm 3 2.5 mm² 6108152
1 piece
VL-3Q2.5 5 SW 5000 mm 3 2.5 mm² 6108154
1 piece
VL-3Q2.5 8 SW 8000 mm 3 2.5 mm² 6108157
1 piece
VL-3Q2.5 10 SW 10000 mm 3 2.5 mm² 6108159
1 piece
Downloads

Download

Download
Download

REACH Declaration of conformity VL-3Q2.5 1 SW / 6108150 , 0.12MB , pdf
Download
RoHS Declaration of conformity VL-3Q2.5 1 SW / 6108150 , 0.12MB , pdf
Download

No invitation to tender text is available for this product.
