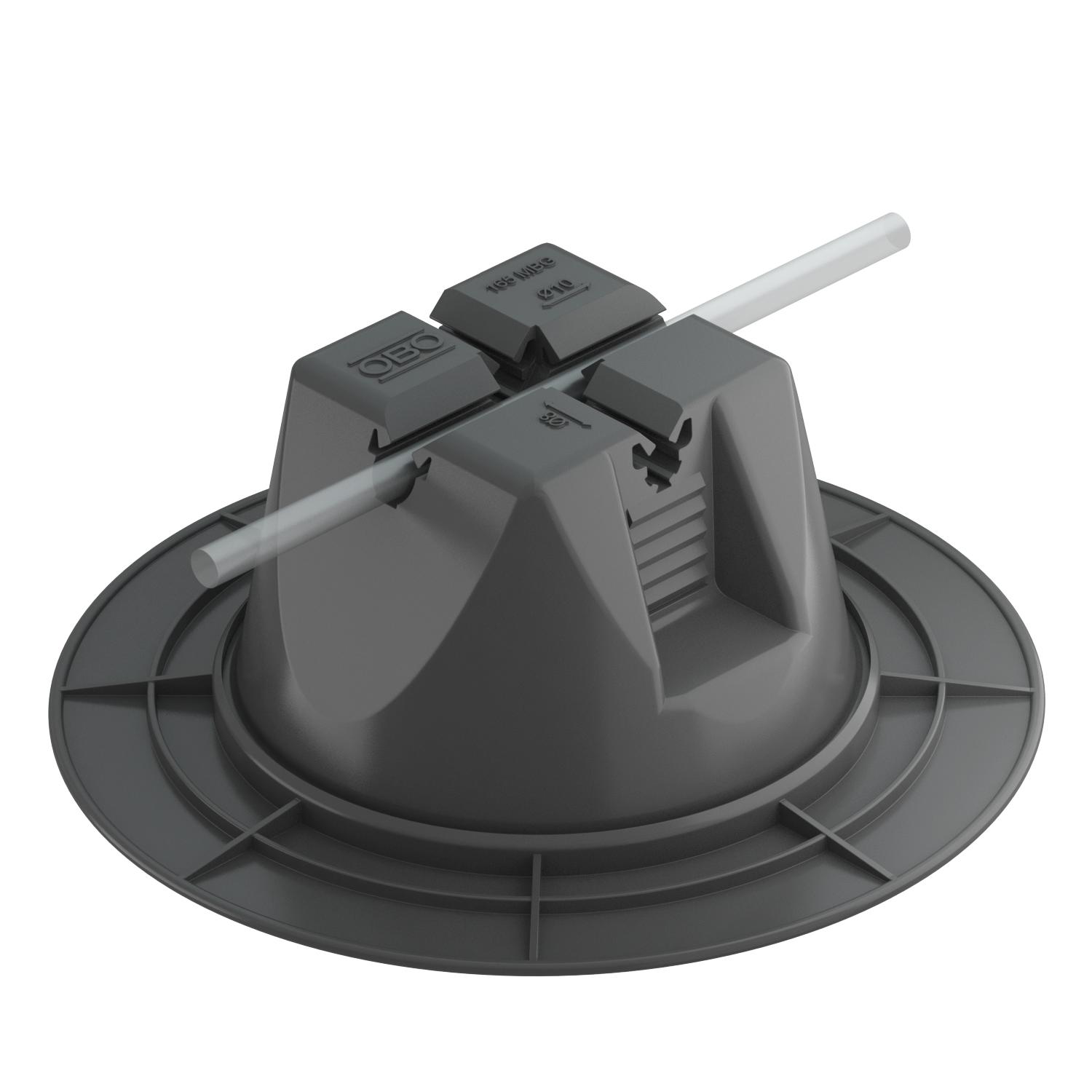

165 MBG... roof cable holder for flat roofs, with increased base section 200 | | Rd 8-10

165 MBG... roof cable holder for flat roofs, with increased base section

Item no. 5218716 | EAN 4012196648320

Item no. / Types	5218716 / 165 MBG-8-10 200

Length	200 mm

Fit	Rd 8-10 mm

Product description

Product description

• Closed form with base

• With double conductor holder

• Filling weight 1 kg (frost-resistant concrete)

• Sleeve from polyethylene, black, UV-resistant and weatherproof

• Base made of polypropylene, black, UV-resistant and weather-resistant

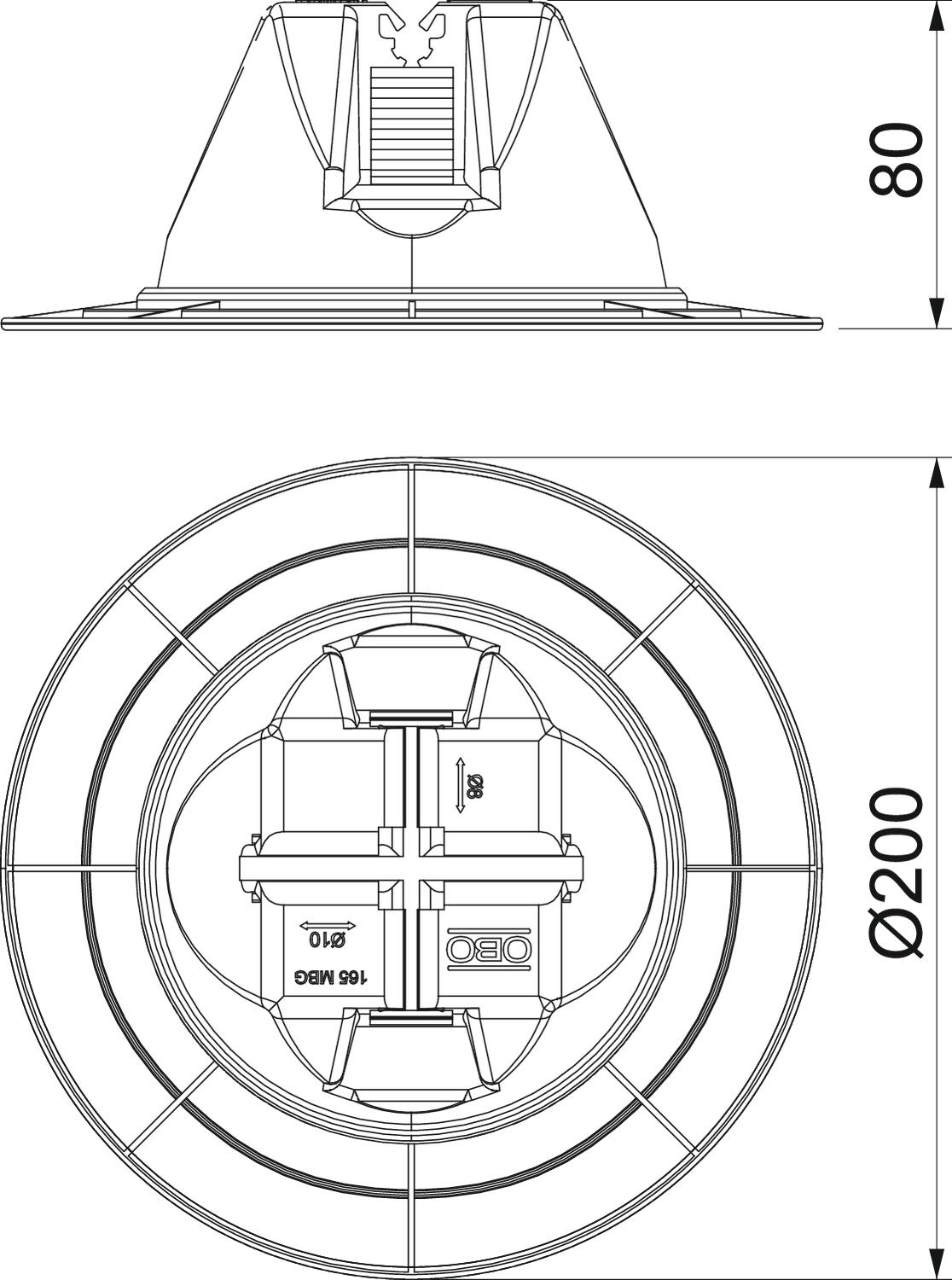

• With larger base section (Ø 200 mm) for better stability

Technical data

Technical data

Application	Flat roof
Colour	Black
Conductor diameter, max.	10
Conductor diameter, min.	8
Conductor fastening type	With clip

Dimension	8-10mm
Fit	Rd 8-10 mm
Length	200 mm
Material	Polyamide/Polyethylene
Mounting type	Miscellaneous

All types

All types

Types	Length	Fit	Item no.	Quantity	SSU
165 MBG-8-10 200	200 mm	Rd 8-10 mm	5218716	piece	12 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Universal flat conductor adapter for roof conductor holder, type 165/MBG	165 MBG UH	5218882	piece	25 piece
Flat conductor adapter for roof conductor holder, type 165/MBG	165 MBG HFL	5218885	piece	12 piece
Mesh cable tray adapter for roof conductor holder	165 MBG HGRM	5218886	piece	50 piece
