100 FS reducer/stop-end

Item no. 7111802 | EAN 4012196341801

100 mm
Product description

Product description

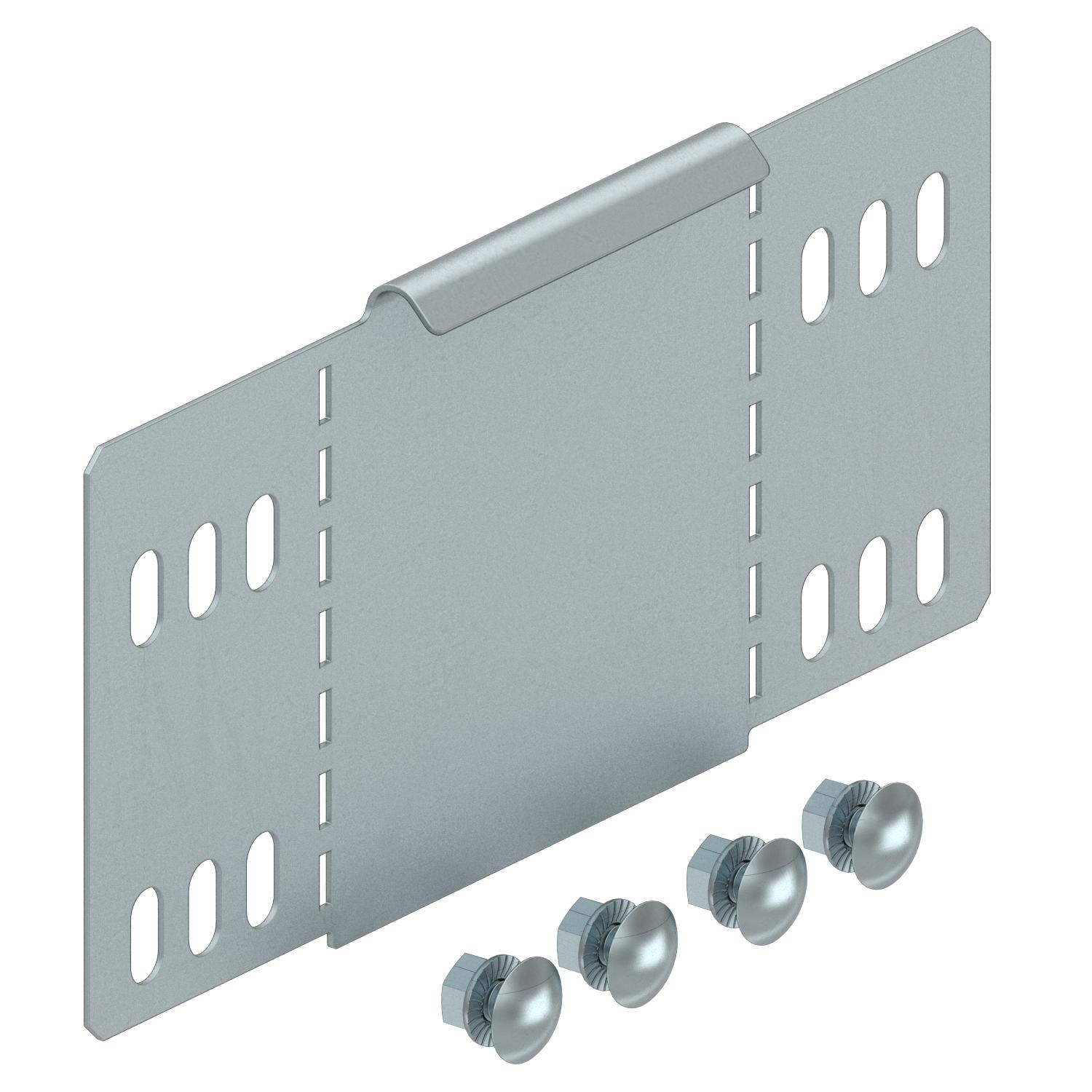

Reducer/stop-end for cable trays with side height 100 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

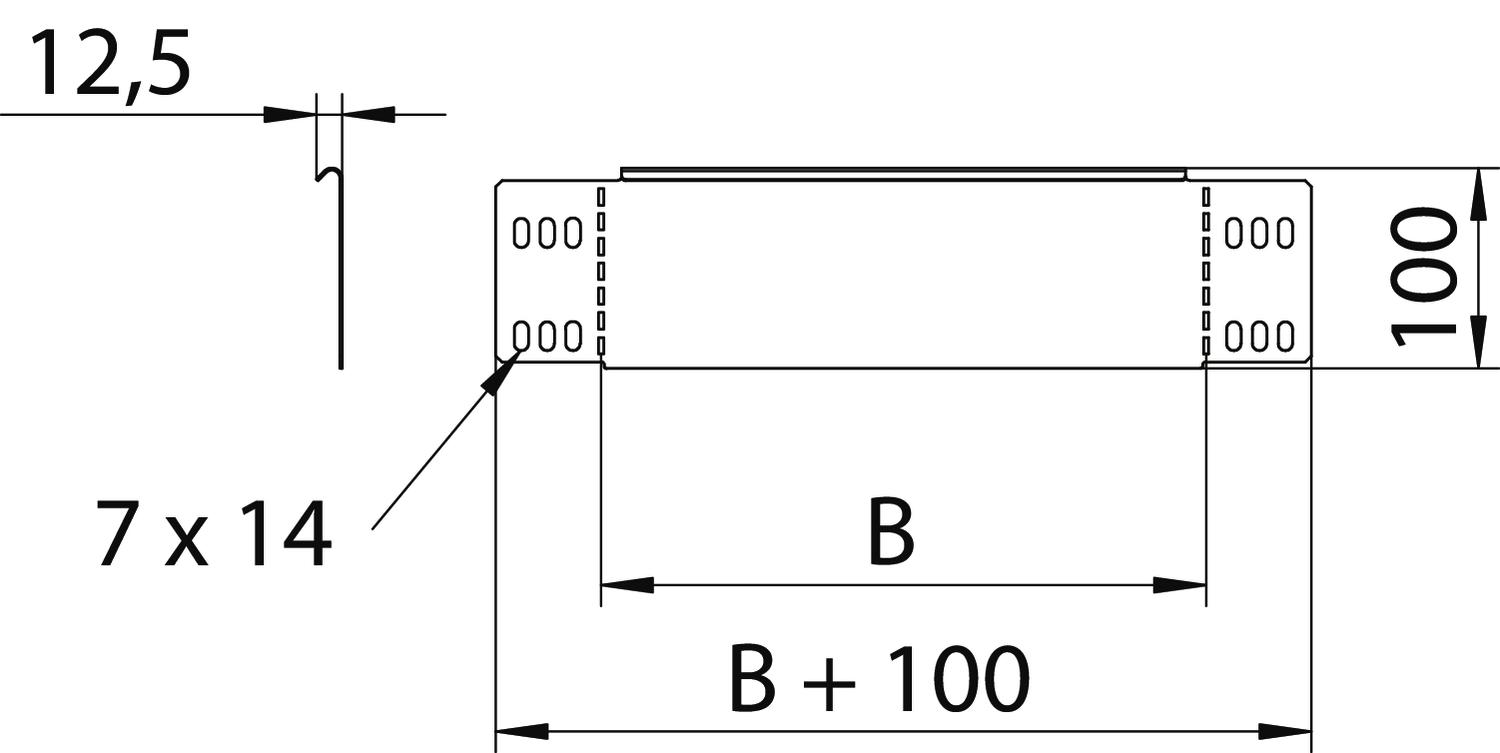

Dimension 100x100
Dimension B 100 mm
Height 100 mm
Height 4 in
Maintain electrical functions no
Material Steel
Plate thickness 1 mm
Surface Strip galvanized
Wide-span version no
Width 4 in
Width 100 mm
All types

All types

Types Width Height Item no. Quantity SSU
RWEB 1010 FS 100 mm 100 mm 7111802
1 piece
RWEB 1020 FS 200 mm 100 mm 7111804
1 piece
RWEB 1030 FS 300 mm 100 mm 7111806
1 piece
RWEB 1040 FS 400 mm 100 mm 7111808
1 piece
RWEB 1050 FS 500 mm 100 mm 7111810
1 piece
RWEB 1060 FS 600 mm 100 mm 7111812
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F Truss-head bolt with flange nut F FRSB 6x12 F 6406122
100 piece
